MAX71336S - Poly- and Single-Phase Energy Meter SoCs

This page provides the datasheet information for the MAX71336S, a member of the MAX71315S Poly- and Single-Phase Energy Meter SoCs family.

Datasheet Summary

Description

The ZON™ P5S/P5SL (MAX71336S/MAX71335S) and ZON M5S/M5SL (MAX71316S/MAX71315S) are very lowpower poly- and single-phase metering systems-on-chips (SoCs) that comprise a 20MHz MAXQ30 MPU core, realtime clock (RTC) with digital temperature compensation, flash memory, LCD drivers and a single-cycle 32

Features

  • Dual-core Architecture for Maximum Performance and Flexibility in 128-Pin LQFP.
  • 32-Bit MAXQ30 MPU Core with 256/512KB Flash, 32KB Data NV-RAM (Shared with CE Data RAM), Up to 20MHz.
  • 32-Bit Computing Engine (CE) with Separate 16KB Program and Data RAM, 40MHz, and Single-Cycle 64-Bit MAC.
  • Low Power Consumption Supports Low BOM Cost.
  • Less than 13.7mA (typ) Consumption at 3.3V and 20MHz in Active Mode.
  • < 3µA in RTC Compensation Mode, 2.3µ.

📥 Download Datasheet

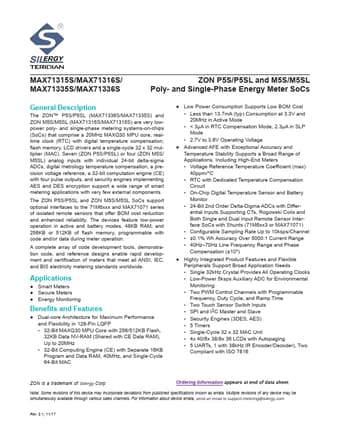

Datasheet preview – MAX71336S

Datasheet Details

Part number MAX71336S
Manufacturer Silergy
File Size 1.98 MB
Description Poly- and Single-Phase Energy Meter SoCs
Datasheet download datasheet MAX71336S Datasheet
Additional preview pages of the MAX71336S datasheet.

📁 Similar Datasheet

  • MAX713 - NiCd/NiMH Battery Fast-Charge Controllers (Maxim Integrated)
  • MAX71314 - Single-Phase Electricity Meter SOC (Maxim Integrated)
  • MAX71315 - Single-Phase Electricity Meter SOC (Maxim Integrated)
  • MAX710 - 3.3V/5V or Adjustable / Step-Up/Down DC-DC Converters (Maxim)
  • MAX71020 - Single-Chip Electricity Meter AFE (Maxim)
  • MAX71020A - Energy Measurement AFE (Maxim Integrated)
  • MAX71071 - Dual-Channel Isolated Metrology ADCs (Maxim Integrated)
  • MAX71071H - Dual-Channel Isolated Metrology ADCs (Maxim Integrated)
  • MAX711 - 3.3V/5V or Adjustable / Step-Up/Down DC-DC Converters (Maxim)
  • MAX712 - NiCd/NiMH Battery Fast-Charge Controllers (Maxim)
Other Datasheets by Silergy
  • MAX71334C - SinglePhase/Polyphase Electricity Meter SoC
  • MAX71335C - SinglePhase/Polyphase Electricity Meter SoC
  • MAX71335S - Poly- and Single-Phase Energy Meter SoCs
  • MAX71313L - Single-Phase Electricity Meter SoC
  • MAX71314C - SinglePhase/Polyphase Electricity Meter SoC
  • MAX71314L - Single-Phase Electricity Meter SoC
  • MAX71315C - SinglePhase/Polyphase Electricity Meter SoC
  • MAX71315S - Poly- and Single-Phase Energy Meter SoCs

Full PDF Text Transcription

Click to expand full text
MAX71315S/MAX71316S/ MAX71335S/MAX71336S ZON P5S/P5SL and M5S/M5SL Poly- and Single-Phase Energy Meter SoCs General Description The ZON™ P5S/P5SL (MAX71336S/MAX71335S) and ZON M5S/M5SL (MAX71316S/MAX71315S) are very lowpower poly- and single-phase metering systems-on-chips (SoCs) that comprise a 20MHz MAXQ30 MPU core, realtime clock (RTC) with digital temperature compensation, flash memory, LCD drivers and a single-cycle 32 x 32 multiplier (MAC).
