SY6283 - Low Loss Power Distribution Load Switch

Datasheet Summary

Description

SY6283 and SY6283A are ultra-low RDS(ON) switch with current limiting function to protect the power source from over current and short circuit conditions.

( ) Temperature Code Package Code Optional Spec Code Temperature Range: -40°

Features

  • Distribution voltages: 2.5V to 5.5V.
  • Over temperature shutdown and automatic retry.
  • Reverse blocking (no body diode).
  • At shutdown, OUT can be forced higher than IN.
  • Built-in softstart.
  • Output discharge function SY6283: No output discharge function SY6283A: Auto output discharge function.
  • RoHS Compliant and Halogen Free.
  • Compact packages minimize board space: DFN1.2x1.6-4 Typical.

📥 Download Datasheet

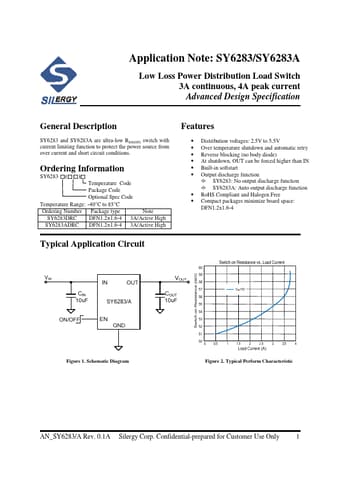

Datasheet preview – SY6283
