SY6288 - Low Loss Power Distribution Switch

Datasheet Summary

Description

SY6288 is an ultra-low RDS(ON) switch with current limiting function to protect the power source from over current and short circuit conditions.

( ) Temperature Code Package Code Optional Spec Code Ordering Number SY6288AAAC SY6288ACAC

Features

Distribution voltages: 2.5V to 5.5V.
Over temperature shutdown and automatic retry.
Reverse blocking (no body diode).
At shutdown, OUT can be forced higher than IN.
Fault flag (OCB) output if over current, thermal shut down, reverse blocking happens.
Automatic output discharge at shutdown o SY6288A1: No output discharge function o Others: Auto output discharge function.
Built-in softstart.
0.4ms rise time.
RoHS Co.

Silergy

📥 Download Datasheet

Datasheet Details

Part number	SY6288
Manufacturer	Silergy
File Size	562.28 KB
Description	Low Loss Power Distribution Switch
Datasheet	SY6288 Datasheet

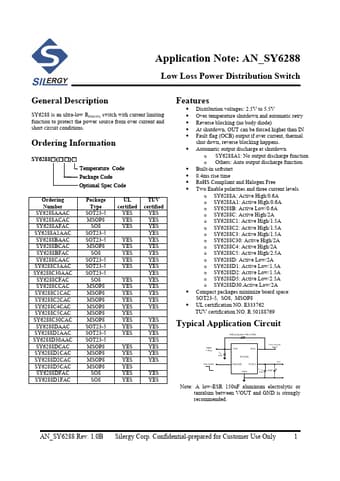

Additional preview pages of the SY6288 datasheet.
