SY6287C - Low Loss Power Distribution Switch

Datasheet Summary

Description

r SY6287C is an ultra-low RDS(ON) power distribution switch a with current limit to protect the power source from over p current and short circuit conditions.

It incorporates over e temperature protection and reverse blocking function.

(

Features

  • Input Voltage: 2.5V to 5.5V.
  • Extremely Low Power Path Resistance: 65mΩ (Typ. ).
  • Adjustable Current Limit Up to 2.0A.
  • Over Temperature Shutdown and Automatic Retry.
  • Reverse Blocking (No Body Diode).
  • Fault Flag (OCB) Output for Over Current and Fault Conditions.
  • Built-in Soft-start.
  • Compact Package Minimizes the Board Space: SOT23- 6/DFN2x2-6.

📥 Download Datasheet

Datasheet preview – SY6287C

Datasheet Details

Part number SY6287C
Manufacturer Silergy
File Size 957.20 KB
Description Low Loss Power Distribution Switch
Datasheet download datasheet SY6287C Datasheet
Additional preview pages of the SY6287C datasheet.

📁 Similar Datasheet

  • SY604 - 125MHz TRIGGER PROGRAMMABLE TIMING EDGE VERNIER (Micrel Semiconductor)
  • SY605 - 125MHz WRITE PROGRAMMABLE TIMING EDGE VERNIER (Micrel Semiconductor)
  • SY6102 - Linear Li-Ion Battery Charger (TPS)
  • SY6500 - 8-Bit Microprocessor (Synertek)
  • SY69753AL - Clock and Data Recovery (Micrel Semiconductor)
  • SY69753L - 155MBPS CLOCK AND DATA RECOVERY (Micrel Semiconductor)
  • SY69754AL - Clock and Data Recovery (Micrel Semiconductor)
  • SY69952 - OC-3/STS-3 CLOCK RECOVERING TRANSCEIVER (Micrel Semiconductor)
Other Datasheets by Silergy
  • SY6280 - 2A Low Loss Power Distribution Switch
  • SY6280A - 2A Low Loss Power Distribution Switch
  • SY6282 - 3A Low Loss Power Distribution Switch
  • SY6283 - Low Loss Power Distribution Load Switch
  • SY6283A - Low Loss Power Distribution Load Switch
  • SY6288 - Low Loss Power Distribution Switch
  • SY6307B - 500mA Low Dropout Bias Rail LDO Regulator
  • SY6345 - 300mA LDO Regulator

Full PDF Text Transcription

Click to expand full text

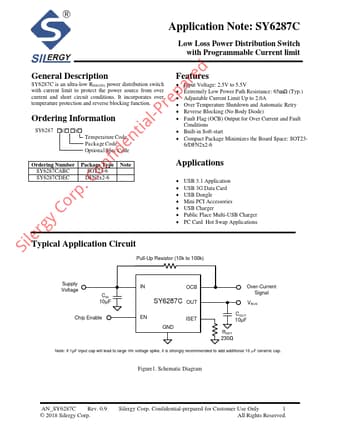

Application Note: SY6287C Low Loss Power Distribution Switch with Programmable Current limit ed General Description r SY6287C is an ultra-low RDS(ON) power distribution switch a with current limit to protect the power source from over p current and short circuit conditions. It incorporates over e temperature protection and reverse blocking function. l-Pr Ordering Information ia SY6287 □(□□)□ t Temperature Code n Package Code e OptionalSpec Code fid Ordering Number Package Type Note n SY6287CABC SOT23-6 y Corp. Co SY6287CDEC DFN2x2-6 Features  Input Voltage: 2.5V to 5.5V  Extremely Low Power Path Resistance: 65mΩ (Typ.)  Adjustable Current Limit Up to 2.
