SY6283A - Low Loss Power Distribution Load Switch

This page provides the datasheet information for the SY6283A, a member of the SY6283 Low Loss Power Distribution Load Switch family.

Datasheet Summary

Description

SY6283 and SY6283A are ultra-low RDS(ON) switch with current limiting function to protect the power source from over current and short circuit conditions.

( ) Temperature Code Package Code Optional Spec Code Temperature Range: -40°

Features

  • Distribution voltages: 2.5V to 5.5V.
  • Over temperature shutdown and automatic retry.
  • Reverse blocking (no body diode).
  • At shutdown, OUT can be forced higher than IN.
  • Built-in softstart.
  • Output discharge function SY6283: No output discharge function SY6283A: Auto output discharge function.
  • RoHS Compliant and Halogen Free.
  • Compact packages minimize board space: DFN1.2x1.6-4 Typical.

📥 Download Datasheet

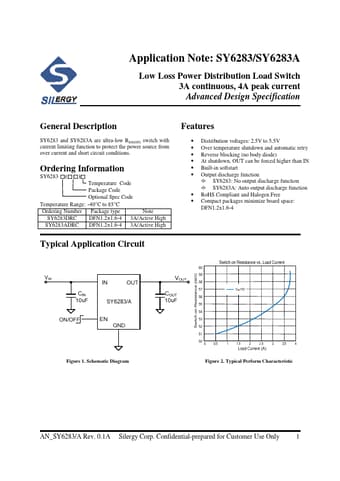

Datasheet preview – SY6283A

Datasheet Details

Part number SY6283A
Manufacturer Silergy
File Size 3.35 MB
Description Low Loss Power Distribution Load Switch
Datasheet download datasheet SY6283A Datasheet
Additional preview pages of the SY6283A datasheet.

📁 Similar Datasheet

  • SY604 - 125MHz TRIGGER PROGRAMMABLE TIMING EDGE VERNIER (Micrel Semiconductor)
  • SY605 - 125MHz WRITE PROGRAMMABLE TIMING EDGE VERNIER (Micrel Semiconductor)
  • SY6102 - Linear Li-Ion Battery Charger (TPS)
  • SY6500 - 8-Bit Microprocessor (Synertek)
  • SY69753AL - Clock and Data Recovery (Micrel Semiconductor)
  • SY69753L - 155MBPS CLOCK AND DATA RECOVERY (Micrel Semiconductor)
  • SY69754AL - Clock and Data Recovery (Micrel Semiconductor)
  • SY69952 - OC-3/STS-3 CLOCK RECOVERING TRANSCEIVER (Micrel Semiconductor)
Other Datasheets by Silergy
  • SY6283 - Low Loss Power Distribution Load Switch
  • SY6280 - 2A Low Loss Power Distribution Switch
  • SY6280A - 2A Low Loss Power Distribution Switch
  • SY6282 - 3A Low Loss Power Distribution Switch
  • SY6287C - Low Loss Power Distribution Switch
  • SY6288 - Low Loss Power Distribution Switch
  • SY6307B - 500mA Low Dropout Bias Rail LDO Regulator
  • SY6345 - 300mA LDO Regulator

Full PDF Text Transcription

Click to expand full text
Application Note: SY6283/SY6283A Low Loss Power Distribution Load Switch 3A continuous, 4A peak current Advanced Design Specification General Description SY6283 and SY6283A are ultra-low RDS(ON) switch with current limiting function to protect the power source from over current and short circuit conditions. Ordering Information SY6283 □(□□)□ Temperature Code Package Code Optional Spec Code Temperature Range: -40°C to 85°C Ordering Number Package type Note SY6283DRC DFN1.2×1.6-4 3A/Active High SY6283ADRC DFN1.2×1.6-4 3A/Active High Features • Distribution voltages: 2.5V to 5.
