SY7088 - 2.3V Minimum Input and 5.5V Maximum Output 3A Peak Current Synchronous Boost

Product Overview

Silergy

Datasheet Details

Part number	SY7088
Manufacturer	Silergy
File Size	1.57 MB
Description	2.3V Minimum Input and 5.5V Maximum Output 3A Peak Current Synchronous Boost
Datasheet	SY7088 Datasheet

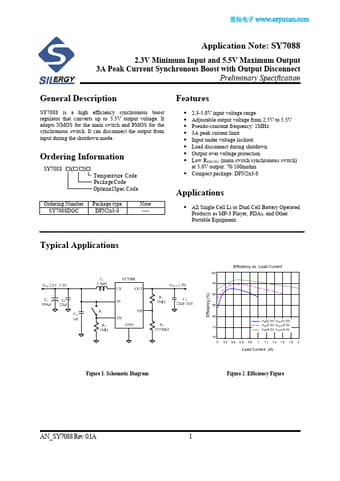

Additional preview pages of the SY7088 datasheet.

Product details

Description

SY7088 is a high efficiency synchronous boost regulator that converts up to 5.5V output voltage. ( ) Tempera ture Code Packa ge Code Optiona l Spec Code Ordering Number Package type SY7088DGC DFN2x3-8 Note ----

Features

2.3-5.0V input voltage range.
Adjustable output voltage from 2.5V to 5.5V.
Pseudo-constant frequency: 1MHz.
3A peak current limit.
Input under voltage lockout.
Load disconnect during shutdown.
Output over voltage protection.
Low RDS(ON) (main switch/synchronous switch) at 5.0V output: 70/100mohm.
Compact package: DFN2x3-8.
