SII154 - Display Ranging

Product Overview

Silicon Image

📥 Download Datasheet

SII154 Display Ranging by Silicon Image - Datasheet Preview — Datasheet preview – SII154

Datasheet Details

Part number	SII154
Manufacturer	Silicon Image
File Size	148.28 KB
Description	Display Ranging
Datasheet	SII154 Datasheet

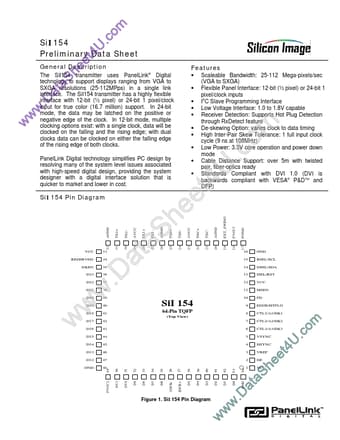

Additional preview pages of the SII154 datasheet.

Product details

Description

e h S a at .D w SiI 154 Preliminary Data Sheet 4U .m o c

Features

Scaleable Bandwidth: 25-112 Mega-pixels/sec (VGA to SXGA) Flexible Panel Interface: 12-bit (½ pixel) or 24-bit 1 pixel/clock inputs 2 I C Slave Programming Interface Low Voltage Interface: 1.0 to 1.8V capable Receiver Detection: Supports Hot Plug Detection through RxDetect feature De-skewing Option: varies clock to data timing High Inter-Pair Skew Tolerance: 1 full input clock cycle (9 ns at 108MH.
