SI5100

OC-48/STM-16 SONET/SDH TRANSCEIVER

SI5100 Features

* Complete, low-power, high-speed, SONET/SDH transceiver with integrated limiting amp, CDR, CMU, and MUX/DEMUX

* Data rates supported:

* SONET-compliant loop timed OC-48/STM-16 through 2.7 Gbps operation FEC

* Programmable slicing level and

* Low-power operation 1.2 W (typ) sam

SI5100 General Description

The Si5100 is a complete low-power transceiver for high-speed serial communication systems operating between OC-48 and 2.7 Gbps. The receive path consists of a fully-integrated limiting amplifier, clock and data reco.

SI5100 Datasheet (1.22 MB)

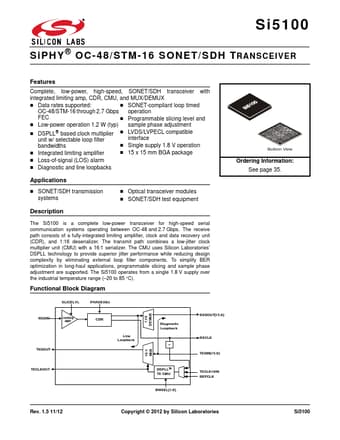

Preview of SI5100 PDF

Datasheet Details

Part number:

SI5100

Manufacturer:

Silicon Laboratories

File Size:

1.22 MB

Description:

Oc-48/stm-16 sonet/sdh transceiver.
