SI512 - DUAL FREQUENCY CRYSTAL OSCILLATOR

Silicon Laboratories

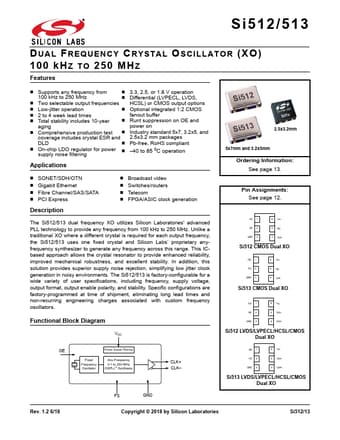

SI512 Datasheet Preview — Preview of SI512 PDF

Datasheet Details

Part number	SI512
Manufacturer	Silicon Laboratories ↗
File Size	596.26 KB
Description	DUAL FREQUENCY CRYSTAL OSCILLATOR
Datasheet	SI512-SiliconLaboratories.pdf

SI512 Product details

Description

Broadcast video Switches/routers Telecom FPGA/ASIC clock generation The Si512/513 dual frequency XO utilizes Silicon Laboratories' advanced PLL technology to provide any frequency from 100 kHz to 250 MHz.Unlike a traditional XO where a different crystal is required for each output frequency, the Si512/513 uses one fixed crystal and Silicon Labs’ proprietary anyfrequency synthesizer to generate any frequency across this range.This ICbased approach allows the crystal re

Features

Supports any frequency from.
3.3, 2.5, or 1.8 V operation 100 kHz to 250 MHz.
Differential (LVPECL, LVDS,.
Two selectable output frequencies HCSL) or CMOS output options.
Low-jitter operation.
Optional integrated 1:2 CMOS.
2 to 4 week lead times fanout buffer.
Total stability includes 10-year aging.
Runt suppression on OE and power on.
Comprehensive production test.
Industry standard 5x7 and coverage includes crystal ESR and 3.2.
