Si510 - CRYSTAL OSCILLATOR

Skyworks

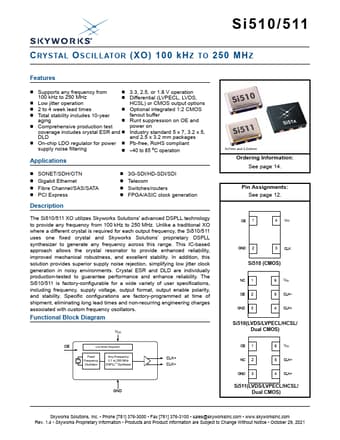

Si510 Datasheet Preview — Preview of Si510 PDF

Datasheet Details

Part number	Si510
Manufacturer	Skyworks
File Size	609.74 KB
Description	CRYSTAL OSCILLATOR
Datasheet	Si510-Skyworks.pdf

Si510 Product details

Description

3G-SDI/HD-SDI/SDI Telecom Switches/routers FPGA/ASIC clock generation The Si510/511 XO utilizes Skyworks Solutions' advanced DSPLL technology to provide any frequency from 100 kHz to 250 MHz.Unlike a traditional XO where a different crystal is required for each output frequency, the Si510/511 uses one fixed crystal and Skyworks Solutions’ proprietary DSPLL synthesizer to generate any frequency across this range.This IC-based approach allows the crystal resonator to pr

Features

Supports any frequency from.
3.3, 2.5, or 1.8 V operation 100 kHz to 250 MHz.
Differential (LVPECL, LVDS,.
Low jitter operation HCSL) or CMOS output options.
2 to 4 week lead times.
Optional integrated 1:2 CMOS.
Total stability includes 10-year fanout buffer aging.
Runt suppression on OE and.
Comprehensive production test power on coverage includes crystal ESR and.
Industry standard 5 x 7, 3.2 x 5, DLD and 2.5 x 3.2 mm packages.
