Si514 - ANY-FREQUENCY I2C PROGRAMMABLE XO

Skyworks

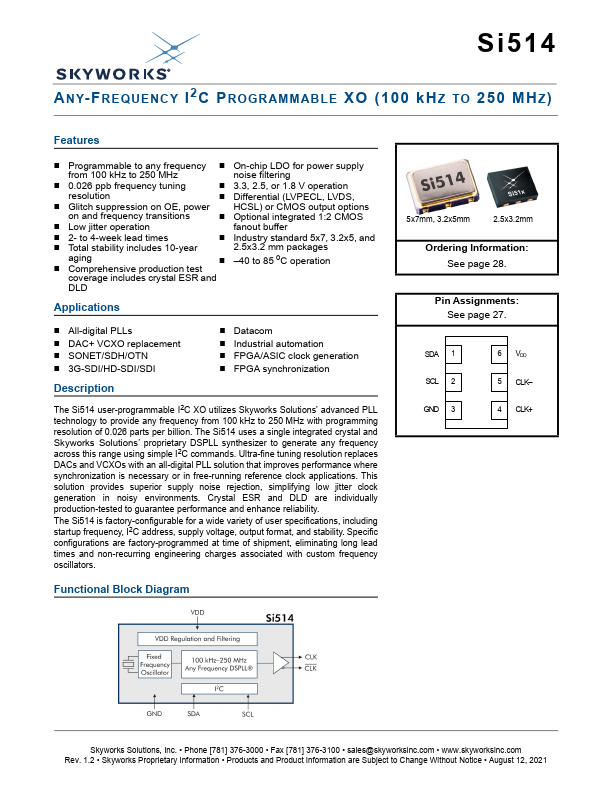

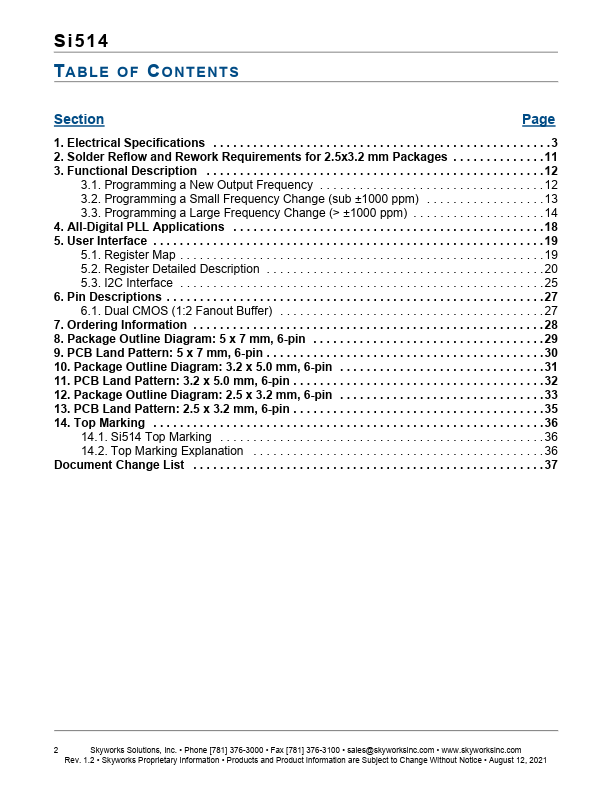

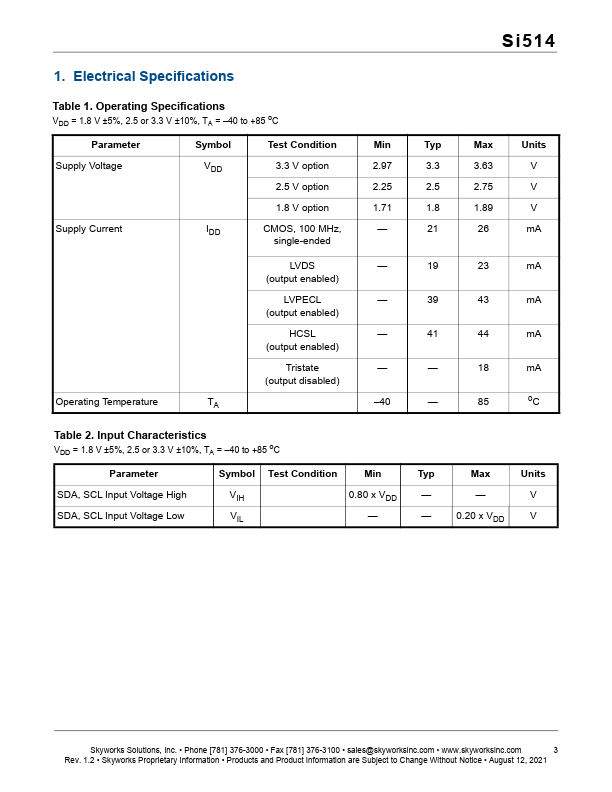

Si514 Datasheet Preview — Preview of Si514 PDF

Datasheet Details

Part number	Si514
Manufacturer	Skyworks
File Size	2.29 MB
Description	ANY-FREQUENCY I2C PROGRAMMABLE XO
Datasheet	Si514-Skyworks.pdf

Si514 Product details

Description

The Si514 user-programmable I2C XO utilizes Skyworks Solutions' advanced PLL technology to provide any frequency from 100 kHz to 250 MHz with programming resolution of 0.026 parts per billion.

Features

Programmable to any frequency.
On-chip LDO for power supply from 100 kHz to 250 MHz noise filtering.
0.026 ppb frequency tuning.
3.3, 2.5, or 1.8 V operation resolution.
Differential (LVPECL, LVDS,.
Glitch suppression on OE, power HCSL) or CMOS output options on and frequency transitions.
Optional integrated 1:2 CMOS.
Low jitter operation fanout buffer.
2- to 4-week lead times.
Industry standard 5x7, 3.2x5, and.
Total stabili.
