TS25P05G - 25A Single-Phase Glass Passivated Bridge Rectifier

Name: TS25P05G
SKU: TS25P05G-586018

Silicon Standard

The TS25P05G by Silicon Standard is a 25A Single-Phase Glass Passivated Bridge Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	TS25P05G
Manufacturer	Silicon Standard
File Size	193.98 KB
Description	25A Single-Phase Glass Passivated Bridge Rectifier
Datasheet	TS25P05G_SiliconStandard.pdf

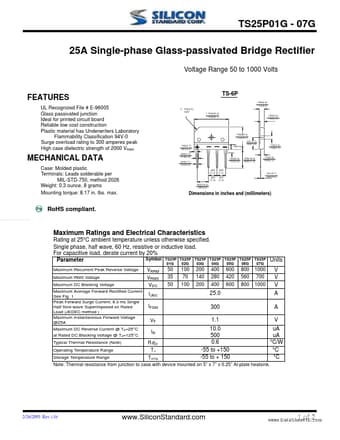

Additional preview pages of the TS25P05G datasheet.

UL Recognized File # E-96005 Glass passivated junction Ideal for printed circuit board Reliable low cost construction Plastic material has Underwriters Laboratory Flammability Classification 94V-0 Surge overload rating to 300 amperes peak High case dielectric strength of 2000 VRMS C .118(3.0) X45 0 1.193(30.3) 1.169(29.7) TS-6P .189(4.8) .173(4.4) .150(3.8) .134(3.4) .799(20.3) .776(19.7) .106(2.7) .091(2.3) .094(2.4) .079(2.0) .043(1.1) .035(0.9) .303 (7.7) .287 (7.3) .402(10.2) .386(9.8) .3.
