SSF1526 MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

Main Product Characteristics: VDSS 150V RDS(on) 22mohm(typ.) ID 65A .
It utilizes the latest trench processing techniques to achieve the high cell density and reduces the on-resistance with high repetitive avalanche rat.

📥 Download Datasheet

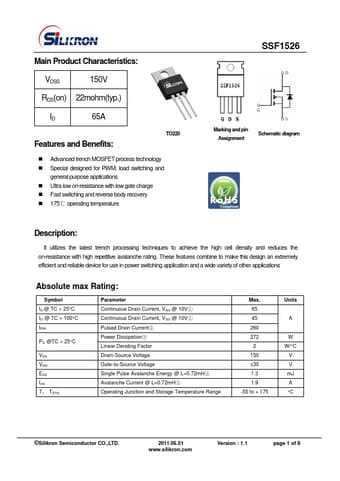

Preview of SSF1526 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SSF1526
Manufacturer
Silikron
File Size
623.88 KB
Datasheet
SSF1526-Silikron.pdf
Description
MOSFET

Features

* TO220
* Advanced trench MOSFET process technology

Applications

* Ultra low on-resistance with low gate charge
* Fast switching and reverse body recovery
