SSFN2220

MOSFET

SSFN2220 Features

* VDS = 20V,ID = 6A RDS(ON) < 39mΩ @ VGS=2.5V RDS(ON) < 25mΩ @ VGS=4.5V

* High Power and current handing capability

* Lead free product is acquired

* Surface Mount Package Application

* Battery protection

* Load switch

* Power management Pb Schematic diagram Pin Assignmen

SSFN2220 General Description

The SSFN2220 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V. This device is suitable for use as a Battery protection or in other Switching application. GENERAL FEATURES
* VDS = 20V,ID = 6A RDS(ON) < 39mΩ @ VGS=2.5V R.

SSFN2220 Datasheet (162.59 KB)

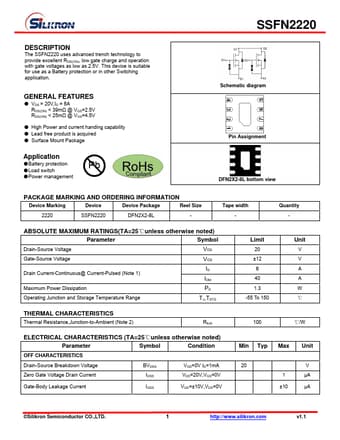

Preview of SSFN2220 PDF

Datasheet Details

Part number:

SSFN2220

Manufacturer:

Silikron

File Size:

162.59 KB

Description:

Mosfet.
