SSFN2569

MOSFET

SSFN2569 Features

* Advanced MOSFET process technology

* Special designed for PWM, load switching and general purpose applications

* Ultra low on-resistance with low gate charge

* Fast switching and reverse body recovery

* 150℃ operating temperature DFN 3x2-8L Bottom View SSFN2569 D1 G1 G2 D

SSFN2569 General Description

It utilizes the latest processing techniques to achieve the high cell density and reduces the on-resistance with high repetitive avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in power switching application and a wide variety of other.

SSFN2569 Datasheet (471.19 KB)

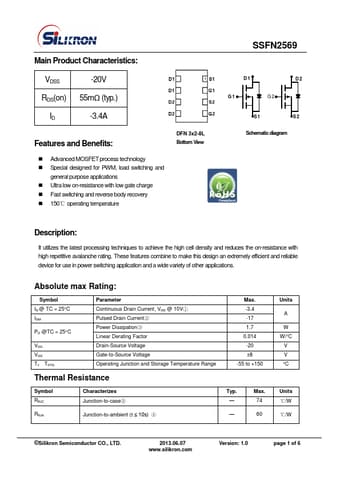

Preview of SSFN2569 PDF

Datasheet Details

Part number:

SSFN2569

Manufacturer:

Silikron

File Size:

471.19 KB

Description:

Mosfet.
