SSFN3313

MOSFET

SSFN3313 Features

* VDS =-30V,ID =-8A RDS(ON) < 25mΩ @ VGS=-4.5V RDS(ON) < 14mΩ @ VGS=-10V

* High Power and current handing capability

* Lead free product is acquired

* Surface Mount Package D G S Schematic diagram Marking and pin Assignment Application

* PWM applications

* Load switch

* Po

SSFN3313 General Description

The SSFN3313 uses advanced trench technology to provide excellent RDS(ON) and low gate charge .This device is suitable for use as a load switch or in PWM applications. GENERAL FEATURES
* VDS =-30V,ID =-8A RDS(ON) < 25mΩ @ VGS=-4.5V RDS(ON) < 14mΩ @ VGS=-10V
* High Power and current handing c.

SSFN3313 Datasheet (168.71 KB)

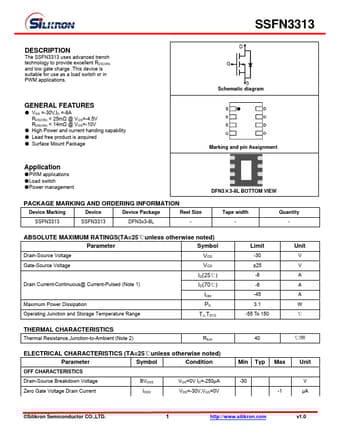

Preview of SSFN3313 PDF

Datasheet Details

Part number:

SSFN3313

Manufacturer:

Silikron

File Size:

168.71 KB

Description:

Mosfet.
