SSFN3317

MOSFET

SSFN3317 Features

* DFN3×3-8L

* Advanced MOSFET process technology

* Special designed for PWM, load switching and general purpose applications

* Ultra low on-resistance with low gate charge

* Fast switching and reverse body recovery

* 150℃ operating temperature SSFN3317 Pin Assignments Schemati

SSFN3317 General Description

It utilizes the latest processing techniques to achieve the high cell density and reduces the on-resistance with high repetitive avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in power switching application and a wide variety of other.

SSFN3317 Datasheet (444.95 KB)

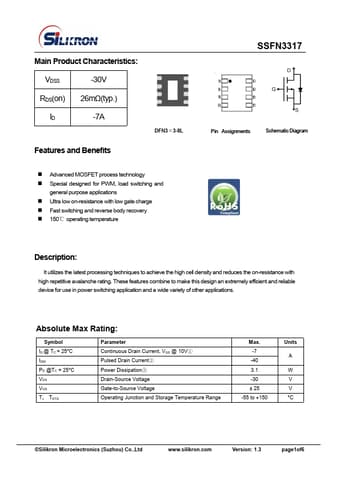

Preview of SSFN3317 PDF

Datasheet Details

Part number:

SSFN3317

Manufacturer:

Silikron

File Size:

444.95 KB

Description:

Mosfet.
