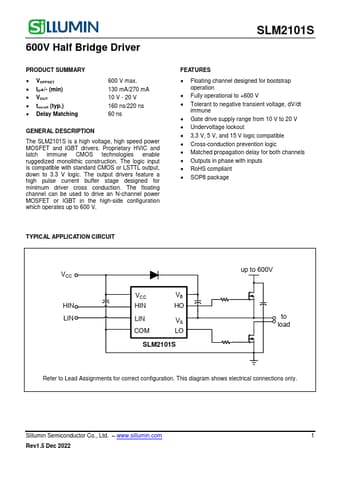

SLM2101S Datasheet, Driver, Sillumin

SLM2101S Features

• Driver
• Floating channel designed for bootstrap operation
• Fully operational to +600 V
• Tolerant to negative transient voltage, dV/dt immune
• Gate drive sup

PDF File Details

Part number:

SLM2101S

Manufacturer:

Sillumin

File Size:

637.99kb

Download:

📄 Datasheet

Description:

600v half bridge driver. The SLM2101S is a high voltage, high speed power MOSFET and IGBT drivers. Proprietary HVIC and latch immune CMOS technologies enable
