SLM2110 - 600V High and Low Side Driver

Datasheet Summary

Description

The SLM2110 is a high voltage, high speed power MOSFET and IGBT drivers with independent highand low-side referenced output channels.

Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction.

Features

  • Floating channel designed for bootstrap operation.
  • Fully operational to +600 V.
  • Tolerant to negative transient voltage, dV/dt immune.
  • Gate drive supply range from 10 V to 20 V.
  • Undervoltage lockout for both channels.
  • Logic and power ground +/- 5V offset.
  • Cross-conduction prevention logic.
  • Schmitt-triggered inputs with pull-down.
  • Cycle-by-cycle edge-triggered shutdown logic.
  • Matched propagation delay for bo.

📥 Download Datasheet

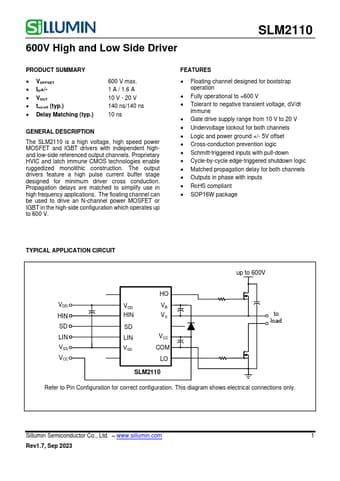

Datasheet preview – SLM2110

Datasheet Details

Part number SLM2110
Manufacturer Sillumin
File Size 325.60 KB
Description 600V High and Low Side Driver
Datasheet download datasheet SLM2110 Datasheet
Additional preview pages of the SLM2110 datasheet.
