SLM2104S

600V Half-Bridge Driver

SLM2104S Features

* Floating channel designed for bootstrap operation

* Fully operational to +600 V

* Tolerant to negative transient voltage, dV/dt immune

* Gate drive supply range from 10 V to 20 V

* Undervoltage lockout

* 3.3 V, 5 V, and 15 V logic compatible

* Cross-conduction preventio

SLM2104S General Description

The SLM2104S is a high voltage, high speed power MOSFET and IGBT drivers with dependent highand low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down t.

SLM2104S Datasheet (326.60 KB)

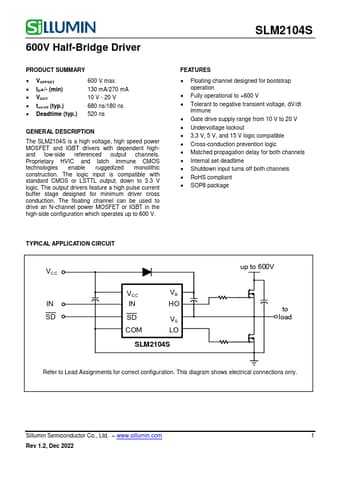

Preview of SLM2104S PDF

Datasheet Details

Part number:

SLM2104S

Manufacturer:

Sillumin

File Size:

326.60 KB

Description:

600v half-bridge driver.
600V Half-Bridge Driver PRODUCT SUMMARY
* VOFFSET
* IO+/- (min)
* VOUT
* ton/off (typ.)
* Deadtime (typ.) 600 V max. 130 mA/270.
