SLM2103S - 600V Half-Bridge Driver

Product Overview

Sillumin

📥 Download Datasheet

SLM2103S 600V Half-Bridge Driver by Sillumin - Datasheet Preview — Datasheet preview – SLM2103S

Datasheet Details

Part number	SLM2103S
Manufacturer	Sillumin
File Size	3.24 MB
Description	600V Half-Bridge Driver
Datasheet	SLM2103S Datasheet

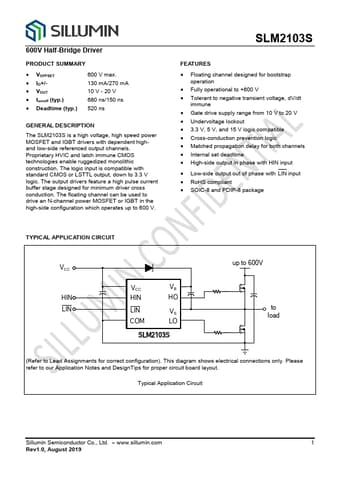

Additional preview pages of the SLM2103S datasheet.

Product details

Description

The SLM2103S is a high voltage, high speed power MOSFET and IGBT drivers with dependent highand low-side referenced output channels.

Features

Floating channel designed for bootstrap operation.
Fully operational to +600 V.
Tolerant to negative transient voltage, dV/dt immune.
Gate drive supply range from 10 V to 20 V.
Undervoltage lockout.
3.3 V, 5 V, and 15 V logic compatible.
Cross-conduction prevention logic.
Matched propagation delay for both channels.
Internal set deadtime.
High-side output in phase with HIN input.
Low-side output out of phase with LIN input.
RoHS compli.
