GE6065B - 1/6 Tones Alarm Generator

Datasheet Summary

Description

GE6065B is a CMOS process to manufacture the alarm sound generator ASIC, built-in voltage regulator circuit, reset capacitor, can directly enter the high-voltage power supply, and omit the diode and the reset capacitor voltage regulator.

Features

CMOS Process Low-power, high noise immunity Built-in oscillator Built-in voltage regulator circuits can be directly input 12V-24V power supply Built-in reset circuit, provincial and lack of external reset capacitor Power control, loop output Pin Assignment OSCO OSCI TEST GND 4 5 1 8 SEL VDD BZ2 BZ1 GE6065B-DIP8 GE6065B-SOP8 Block Diagram Absolute Maximum Ratings DC Supply Voltage VDD Input Voltage Range VIN Storage Temperature TSTG Operating Temperature TOP ----------------------------------.

SilvanChip

📥 Download Datasheet

Datasheet Details

Part number	GE6065B
Manufacturer	SilvanChip
File Size	148.39 KB
Description	1/6 Tones Alarm Generator
Datasheet	GE6065B Datasheet

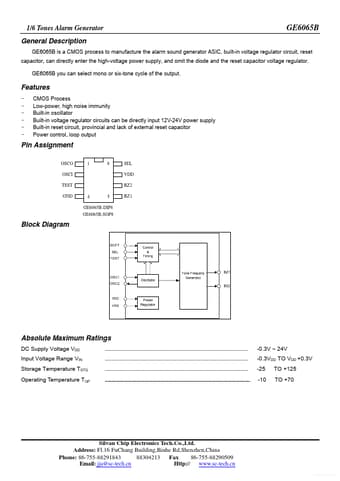

Additional preview pages of the GE6065B datasheet.

📁 Similar Datasheet

GE6060 - NPN POWER TRANSISTOR (GE)
GE6061 - NPN POWER TRANSISTOR (GE)
GE6062 - NPN POWER TRANSISTOR (GE)
GE60L02 - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (GTM)
GE60N03 - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (GTM)
GE60T03 - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (GTM)
GE6251 - NPN POWER TRANSISTOR (GE)
GE6252 - NPN POWER TRANSISTOR (GE)
GE6253 - NPN POWER TRANSISTOR (GE)
GE630 - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (GTM)

Other Datasheets by SilvanChip

GE6065A - CMOS
GE6061 - CMOS
GE6063 - CMOS

Full PDF Text Transcription

Click to expand full text

1/6 Tones Alarm Generator General Description GE6065B GE6065B is a CMOS process to manufacture the alarm sound generator ASIC, built-in voltage regulator circuit, reset capacitor, can directly enter the high-voltage power supply, and omit the diode and the reset capacitor voltage regulator. GE6065B you can select mono or six-tone cycle of the output.

Published: Dec 11, 2013 |
