STK14EC8 - 512Kx8 Autostore nvSRAM

Datasheet Summary

Description

The Simtek STK14EC8 is a fast static RAM with a non-volatile Quantum Trap storage element included with each memory cell.

The SRAM provides the fast access & cycle times, ease of use and unlimited read & write endurance of a normal SRAM.

Features

  • 15, 25, 45 ns Read Access and R/W Cycle Time.
  • Unlimited Read/Write Endurance.
  • Automatic Non-volatile STORE on Power Loss.
  • Non-Volatile STORE Under Hardware or Software Control.
  • Automatic RECALL to SRAM on Power Up.
  • Unlimited RECALL Cycles.
  • 200K STORE Endurance.
  • 20-Year Non-volatile Data Retention.
  • Single 3.3V +0.3V, -0.6V Power Supply.
  • Commercial, Industrial Temperatures.
  • 44-pin 400-mil TSOPII (Ro.

📥 Download Datasheet

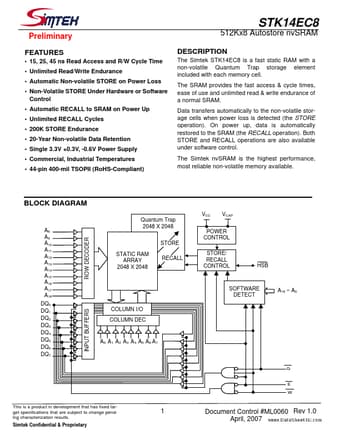

Datasheet preview – STK14EC8

Datasheet Details

Part number STK14EC8
Manufacturer Simtek
File Size 239.16 KB
Description 512Kx8 Autostore nvSRAM
Datasheet download datasheet STK14EC8 Datasheet
Additional preview pages of the STK14EC8 datasheet.

📁 Similar Datasheet

  • STK14C88 - 32 K x 8 AutoStore nvSRAM (Cypress Semiconductor)
  • STK103 - N-Channel MOSFET (SamHop Microelectronics)
  • STK1030 - AF Power Amplifier Output Stage (ETC)
  • STK1030 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1035 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1039 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1040 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1045 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1049 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1050 - (STKxxxx) Output Stage of AF Power Amp (ETC)
Other Datasheets by Simtek

Full PDF Text Transcription

Click to expand full text
STK14EC8 www.DataSheet4U.com Preliminary FEATURES • 15, 25, 45 ns Read Access and R/W Cycle Time • Unlimited Read/Write Endurance • Automatic Non-volatile STORE on Power Loss • Non-Volatile STORE Under Hardware or Software Control • Automatic RECALL to SRAM on Power Up • Unlimited RECALL Cycles • 200K STORE Endurance • 20-Year Non-volatile Data Retention • Single 3.3V +0.3V, -0.6V Power Supply • Commercial, Industrial Temperatures • 44-pin 400-mil TSOPII (RoHS-Compliant) 512Kx8 Autostore nvSRAM DESCRIPTION The Simtek STK14EC8 is a fast static RAM with a non-volatile Quantum Trap storage element included with each memory cell. The SRAM provides the fast access & cycle times, ease of use and unlimited read & write endurance of a normal SRAM.
