STK25CA8 - 128K x 8 AutoStore nvSRAM CMOS Nonvolatile Static RAM Module

Datasheet Summary

Description

The Simtek STK25CA8 is a fast static RAM with a nonvolatile, electrically erasable PROM element incorporated in each static memory cell.

The SRAM can be read and written an unlimited number of times, while independent nonvolatile data resides in the EEPROM.

Features

  • Nonvolatile Storage without Battery Problems.
  • Directly Replaces 128K x 8 Static RAM, BatteryBacked RAM or EEPROM.
  • 35ns and 45ns Access Times.
  • STORE to EEPROM Initiated by AutoStore™ on Power Down.
  • RECALL to SRAM on Power Restore.
  • 22mA ICC at 200ns Cycle Time.
  • Unlimited READ, WRITE and RECALL Cycles.
  • 1,000,000 STORE Cycles to EEPROM.
  • 100-Year Data Retention Over Full Commercial Temperature Range.
  • Commercial.

📥 Download Datasheet

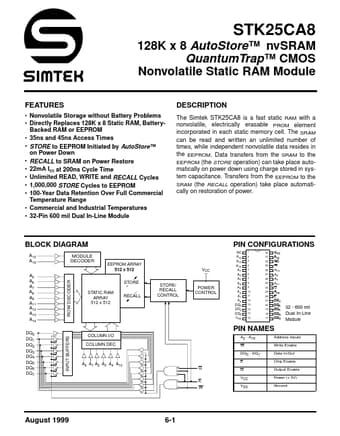

Datasheet preview – STK25CA8

Datasheet Details

Part number STK25CA8
Manufacturer Simtek
File Size 148.55 KB
Description 128K x 8 AutoStore nvSRAM CMOS Nonvolatile Static RAM Module
Datasheet download datasheet STK25CA8 Datasheet
Additional preview pages of the STK25CA8 datasheet.

📁 Similar Datasheet

  • STK200 - Flash MCU Starter Kit User Guide Manual (Atmel)
  • STK2025 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK2029 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK2030 - Power Amp (ETC)
  • STK2038II - POWER AMPLIFIER (ETC)
  • STK2040 - Power Amp (ETC)
  • STK2050 - (STK2xxx) 2CH PURE COMPLEMENTARY D.P.P. SERIES (ETC)
  • STK20C04 - CMOS nvSRAM High Performance 512 x 8 Nonvolatile Static RAM (ETC)
  • STK20N3LLH5 - N-channel Power MOSFET (STMicroelectronics)
  • STK2125ST - Hybrid Linear (ETC)
Other Datasheets by Simtek

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com STK25CA8 128K x 8 AutoStore™ nvSRAM QuantumTrap™ CMOS Nonvolatile Static RAM Module FEATURES • Nonvolatile Storage without Battery Problems • Directly Replaces 128K x 8 Static RAM, BatteryBacked RAM or EEPROM • 35ns and 45ns Access Times • STORE to EEPROM Initiated by AutoStore™ on Power Down • RECALL to SRAM on Power Restore • 22mA ICC at 200ns Cycle Time • Unlimited READ, WRITE and RECALL Cycles • 1,000,000 STORE Cycles to EEPROM • 100-Year Data Retention Over Full Commercial Temperature Range • Commercial and Industrial Temperatures • 32-Pin 600 mil Dual In-Line Module DESCRIPTION The Simtek STK25CA8 is a fast static RAM with a nonvolatile, electrically erasable PROM element incorporated in each static memory cell.
