U63716

CapStore 2K x 8 nvSRAM

U63716 Datasheet (161.55 KB)

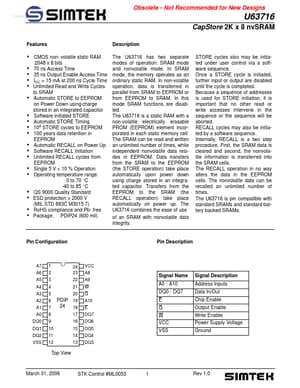

Preview of U63716 PDF Datasheet

Datasheet Details

Part number:

U63716

Manufacturer:

Simtek

File Size:

161.55 KB

Description:

Capstore 2k x 8 nvsram

U63716 Features

* CMOS non- volatile static RAM 2048 x 8 bits 70 ns Access Time 35 ns Output Enable Access Time ICC = 15 mA at

U63716 General Description

The U63716 has two separate modes of operation: SRAM mode and nonvolatile mode. In SRAM mode, the memory operates as an ordinary static RAM. In non-volatile operation, data is transferred in parallel from SRAM to EEPROM or from EEPROM to SRAM. In this mode SRAM functions are disabled. The U63716 is .
