SM4301PSK - P-Channel MOSFET

Datasheet Summary

Description

DD DD S S S G Top View of SOP-8 ( 5,6,7,8 ) D D DD Applications

Portable Equipment and Battery Powered Systems.

Features

  • -30V/-17.5A, RDS(ON) =6.8mW(max. ) @ VGS =-10V RDS(ON) =13mW(max. ) @ VGS =-4.5V.
  • Reliable and Rugged.
  • Lead Free and Green Devices Available (RoHS Compliant).
  • HBM ESD protection level of 2.6KV typical Note : The diode connected between the gate and source serves only as protection against ESD. No gate overvoltage rating is implied. Pin.

📥 Download Datasheet

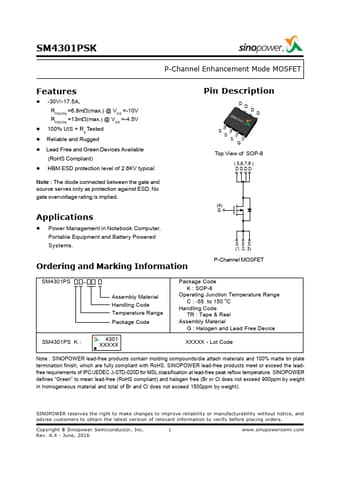

Datasheet preview – SM4301PSK
