SM4511NHKP

N-Channel MOSFET

SM4511NHKP Features

* 30V/100A, RDS(ON)=1.6mW (Max.) @ VGS=10V RDS(ON)=2.5mW (Max.) @ VGS=4.5V

* 100% UIS + Rg Tested

* Reliable and Rugged

* Lower Qg and Qgd for high-speed switching

* Lower RDS(ON) to Minimize Conduction Losses

* Lead Free and Green Devices Available (RoHS Compliant) Pin Desc

SM4511NHKP General Description

DDDD S S SG DFN5x6A-8_EP (5,6,7,8) DD DD Pin 1 Applications
* For E-cigrate Application.
* For Auto Model Airplane.
* Synchronous Rectifier for Server. (4) G SSS ( 1, 2, 3 ) N-Channel MOSFET Ordering and Marking Information SM4511NH Assembly Material Handling Code Temperature Rang.

SM4511NHKP Datasheet (266.15 KB)

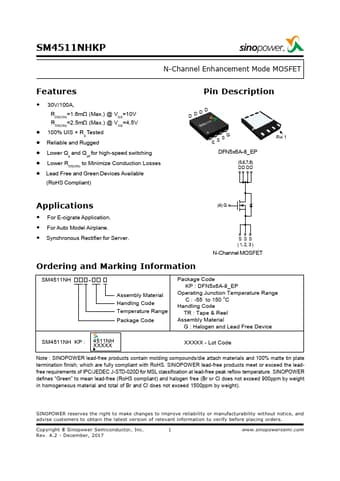

Preview of SM4511NHKP PDF

Datasheet Details

Part number:

SM4511NHKP

Manufacturer:

Sinopower

File Size:

266.15 KB

Description:

N-channel mosfet.
