SM4512NHKP - N-Channel MOSFET

Sinopower

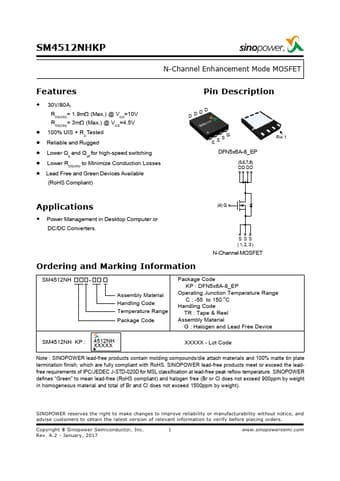

SM4512NHKP Datasheet Preview — Preview of SM4512NHKP PDF

Datasheet Details

Part number	SM4512NHKP
Manufacturer	Sinopower
File Size	266.94 KB
Description	N-Channel MOSFET
Datasheet	SM4512NHKP-Sinopower.pdf

SM4512NHKP Product details

Description

DDDD S S SG DFN5x6A-8_EP (5,6,7,8) DD DD Pin 1 Applications Power Management in Desktop Computer or DC/DC Converters.(4) G SSS ( 1, 2, 3 ) N-Channel MOSFET Ordering and Marking Information SM4512NH Assembly Material Handling Code Temperature Range Package Code Package Code KP : DFN5x6A-8_EP Operating Junction Temperature Range C : -55 to 150 oC Handling Code TR : Tape & Reel Assembly Material G : Halogen and Lead Free Device SM4512NH KP : 4512NH XXXXX XXXXX - Lot Code Note : S

Features

30V/80A, RDS(ON)= 1.9mW (Max. ) @ VGS=10V RDS(ON)= 3mW (Max. ) @ VGS=4.5V.
100% UIS + Rg Tested.
Reliable and Rugged.
Lower Qg and Qgd for high-speed switching.
Lower RDS(ON) to Minimize Conduction Losses.
Lead Free and Green Devices Available (RoHS Compliant) Pin.
