SM4513NHKP Datasheet, MOSFET, Sinopower

SM4513NHKP Features

  • Mosfet
  • 30V/70A, RDS(ON)= 2.7mW (Max.) @ VGS=10V RDS(ON)= 3.5mW (Max.) @ VGS=4.5V
  • Reliable and Rugged
  • Lower Qg and Qgd for high-speed switching
  • Lower RDS

PDF File Details

Part number:

SM4513NHKP

Manufacturer:

Sinopower

File Size:

266.04kb

Download:

📄 Datasheet

Description:

N-channel mosfet. DDDD S S SG DFN5x6A-8_EP (5,6,7,8) DD DD Pin 1 Applications

  • Power Management in Desktop Computer or DC/DC Converters.

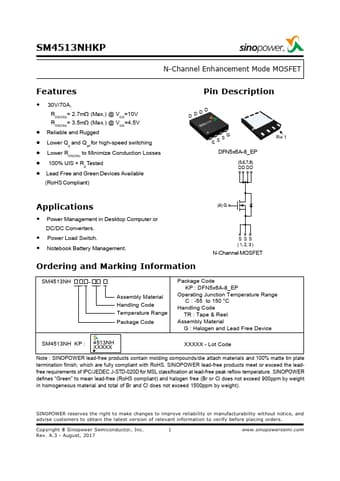

  • Datasheet Preview: SM4513NHKP 📥 Download PDF (266.04kb)
    Page 2 of SM4513NHKP Page 3 of SM4513NHKP

    SM4513NHKP Application

    • Applications
    • Power Management in Desktop Computer or DC/DC Converters.
    • Power Load Switch.
    • Notebook Battery Management.
