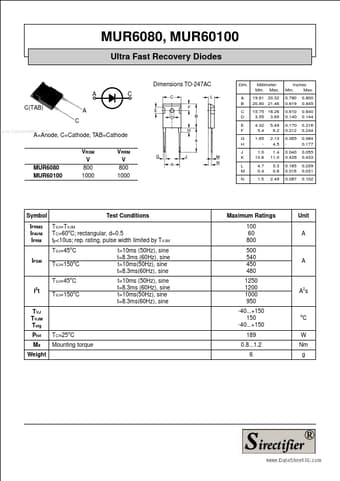

MUR6080, MUR60100 Ultra Fast Recovery Diodes Dimensions TO-247AC A C(TAB) C www.DataSheet4U.com Dim.
A B C D E F G H J K L M N C Millimeter Min.
Max.
19.81 20.32 20.80 21.46 15.75 16.26 3.55 3.65 4.32 5.4 1.65 1.0 10.8 4.7 0.4 1.5 5.49 6.2 2.13 4.5 1.4 11.0 5.3 0.8 2.49 Inches Min.
Max.
0.780 0.819 0.610 0.140 0.170 0.212 0.065 0.040 0.426 0.185 0.016 0.087 0.800 0.845 0.640 0.144 0.216 0.244 0.084 0.177 0.055 0.433 0.209 0.031 0.102 A A=Anode, C=Cathode, TAB=Cathode VRSM V 800 1000 VRRM V
MUR6080 Features
* International standard package JEDEC TO-247AC
* Planar passivatd chips
* Very short recovery time
* Extremely low switching losses
* Low IRM-values
* Soft recovery behaviour APPLICATIONS
* Antiparallel diode for high frequency switching devices
* Antisaturation dio
