MUR6080PT Datasheet - Sirectifier Semiconductors

MUR6080PT - Ultra Fast Recovery Diodes

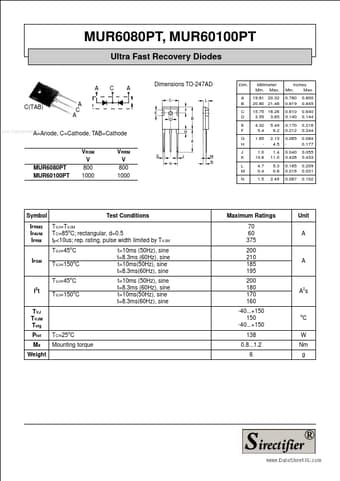

MUR6080PT, MUR60100PT Ultra Fast Recovery Diodes Dimensions TO-247AD A C(TAB) A C A C A Dim.

A B C D E F G H Millimeter Min.

Max.

19.81 20.32 20.80 21.46 15.75 16.26 3.55 3.65 4.32 5.4 1.65 1.0 10.8 4.7 0.4 1.5 5.49 6.2 2.13 4.5 1.4 11.0 5.3 0.8 2.49 Inches Min.

Max.

0.780 0.819 0.610 0.140 0.170 0.212 0.065 0.040 0.426 0.185 0.016 0.087 0.800 0.845 0.640 0.144 0.216 0.244 0.084 0.177 0.055 0.433 0.209 0.031 0.102 www.DataSheet4U.com A=Anode, C=Cathode, TAB=Cathode VRSM V 800 1000 VRRM V

MUR6080PT Features

* International standard package JEDEC TO-247AD

* Planar passivated chips

* Very short recovery time

* Extremely low switching losses

* Low IRM-values

* Soft recovery behaviour APPLICATIONS

* Rectifiers in switch mode power supplies (SMPS)

* Uninterruptible power sup

MUR6080PT_SirectifierSemiconductors.pdf
