STYN1855, STYN1055 Datasheet - Sirectifier Semiconductors

STYN1855 (STYN1055 - STYN1855) Discrete Thyristors

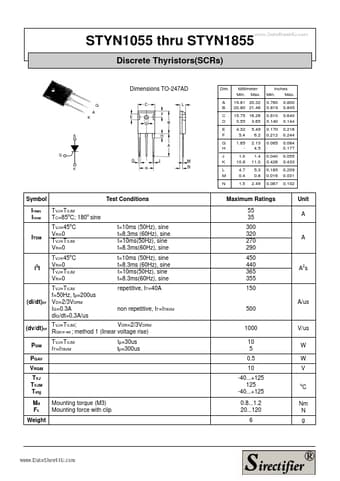

STYN1055 thru STYN1855 Discrete Thyristors(SCRs) Dimensions TO-247AD G A K www.DataSheet4U.com Dim. A B C D E F G H Millimeter Min. Max. 19.81 20.32 20.80 21.46 15.75 16.26 3.55 3.65 4.32 5.4 1.65 1.0 10.8 4.7 0.4 1.5 5.49 6.2 2.13 4.5 1.4 11.0 5.3 0.8 2.49 Inches Min. Max. 0.780 0.819 0.610 0.140 0.170 0.212 0.065 0.040 0.426 0.185 0.016 0.087 0.800 0.845 0.640 0.144 0.216 0.244 0.084 0.177 0.055 0.433 0.209 0.031 0.102 A G K J K L M N Symbol ITRMS ITAVM TVJ=TVJM TC=85oC; 180o sine TVJ=.

STYN1055_SirectifierSemiconductors.pdf

This datasheet PDF includes multiple part numbers: STYN1855, STYN1055. Please refer to the document for exact specifications by model.
STYN1855 Datasheet Preview Page 2

Datasheet Details

Part number:

STYN1855, STYN1055

Manufacturer:

Sirectifier Semiconductors

File Size:

127.36 KB

Description:

(styn1055 - styn1855) discrete thyristors.

Note:

This datasheet PDF includes multiple part numbers: STYN1855, STYN1055.
Please refer to the document for exact specifications by model.
