STY105NM50N Datasheet - STMicroelectronics

STY105NM50N-STMicroelectronics.pdf

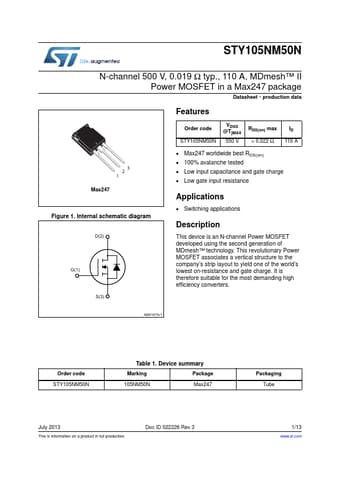

Preview of STY105NM50N PDF
STY105NM50N Datasheet Preview Page 2 STY105NM50N Datasheet Preview Page 3

Datasheet Details

Part number:

STY105NM50N

Manufacturer:

STMicroelectronics ↗

File Size:

879.71 KB

Description:

N-channel power mosfet.

STY105NM50N, N-CHANNEL POWER MOSFET

This device is an N-channel Power MOSFET developed using the second generation of MDmesh™ technology.

This revolutionary Power MOSFET associates a vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge.

It is therefore suitable for the most

STY105NM50N Features

* 3 2 1 Max247 Figure 1. Internal schematic diagram '

*  6  Order code STY105NM50N VDSS @TjMAX 550 V RDS(on) max < 0.022 Ω ID 110 A

* Max247 worldwide best RDS(on)

* 100% avalanche tested

* Low input capacitance and gate charge

* Low gate input resistan
