Datasheet Details
Part number:
STT60GK14B, STT60GK08B
Manufacturer:
Sirectifier
File Size:
812.81 KB
Description:
Thyristor-thyristor modules.
Note:
This datasheet PDF includes multiple part numbers: STT60GK14B, STT60GK08B.
Please refer to the document for exact specifications by model.

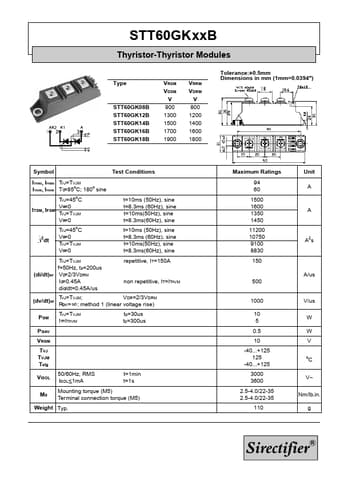

STT60GK14B, STT60GK08B, Thyristor-Thyristor Modules
STT60GKxxB Thyristor-Thyristor Modules Type VRSM VDSM V 900 1300 1500 1700 1900 VRRM VDRM V 800 1200 1400 1600 1800 Tolerance:+0.5mm Dimensions in mm (1mm=0.0394") STT60GK08B STT60GK12B STT60GK14B STT60GK16B STT60GK18B Symbol ITRMS, IFRMS T VJ=TVJM ITAVM, IFAVM TC=85oC; 180o sine ITSM, IFSM o T VJ=45 C VR=0 T VJ=TVJM VR=0 o T VJ=45 C VR=0 T VJ=TVJM VR=0 Test Conditions Maximum Ratings 94 60 Unit A t=10ms (50Hz), sine t=8.3ms (60Hz), sine t=10ms(50Hz), sine t=8.3ms(60Hz), sine t=10ms (50Hz)
STT60GK14B Features
* International standard package
* Copper base plate
* Glass passivated chips
* Isolation voltage 3600 V~
* UL file NO.310749
* RoHs compliant APPLICATIONS
* DC motor control
* Softstart AC motor controller
* Light, heat and temperature control ADVANTAGES
