STT60GK16B Datasheet - Sirectifier

STT60GK16B Thyristor-Thyristor Modules

STT60GKxxB Thyristor-Thyristor Modules Type VRSM VDSM V 900 1300 1500 1700 1900 VRRM VDRM V 800 1200 1400 1600 1800 Tolerance:+0.5mm Dimensions in mm (1mm=0.0394") STT60GK08B STT60GK12B STT60GK14B STT60GK16B STT60GK18B Symbol ITRMS, IFRMS T VJ=TVJM ITAVM, IFAVM TC=85oC; 180o sine ITSM, IFSM o T VJ=45 C VR=0 T VJ=TVJM VR=0 o T VJ=45 C VR=0 T VJ=TVJM VR=0 Test Conditions Maximum Ratings 94 60 Unit A t=10ms (50Hz), sine t=8.3ms (60Hz), sine t=10ms(50Hz), sine t=8.3ms(60Hz), sine t=10ms (50Hz).

STT60GK16B Features

* International standard package

* Copper base plate

* Glass passivated chips

* Isolation voltage 3600 V~

* UL file NO.310749

* RoHs compliant APPLICATIONS

* DC motor control

* Softstart AC motor controller

* Light, heat and temperature control ADVANTAGES

STT60GK16B Datasheet (812.81 KB)

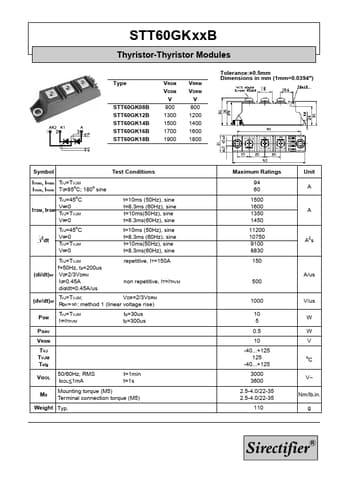

Preview of STT60GK16B PDF
STT60GK16B Datasheet Preview Page 2 STT60GK16B Datasheet Preview Page 3

Datasheet Details

Part number:

STT60GK16B

Manufacturer:

Sirectifier

File Size:

812.81 KB

Description:

Thyristor-thyristor modules.
