SBA-4086 Datasheet - Sirenza Microdevices

SBA-4086 Cascadable InGaP/GaAs HBT MMIC Amplifier

Sirenza Microdevices’ SBA-4086 is a high performance InGaP/GaAs Heterojunction Bipolar Transistor MMIC Amplifier. A Darlington configuration designed with InGaP process technology provides broadband performance up to 5 GHz with excellent thermal perfomance. The heterojunction increases breakdown vol.

SBA-4086 Features

* Now available in Lead Free, RoHS Compliant, & Green Packaging

* IP3 = 33.5dBm @ 1950MHz

* Pout=12.3dBm @-45dBc ACP IS-95 1950MHz

* Robust 1000V ESD, Class 1C

* Operates From Single Supply

* Patented Thermal Design Gain and Return Loss vs Frequency 2

SBA-4086_SirenzaMicrodevices.pdf

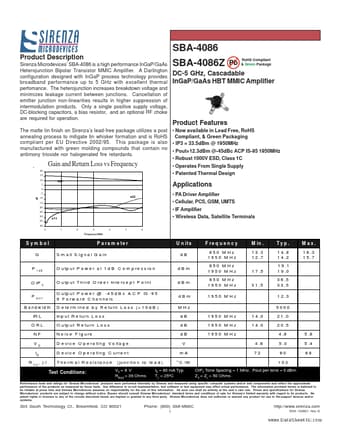

Preview of SBA-4086 PDF
SBA-4086 Datasheet Preview Page 2 SBA-4086 Datasheet Preview Page 3

Datasheet Details

Part number:

SBA-4086

Manufacturer:

Sirenza Microdevices

File Size:

284.07 KB

Description:

Cascadable ingap/gaas hbt mmic amplifier.
