SBA-4089Z Cascadable InGaP/GaAs HBT MMIC Amplifier

Sirenza Microdevices’ SBA-4089 is a high performance InGaP/ GaAs Heterojunction Bipolar Transistor MMIC Amplifier. A Darlington configuration designed with InGaP process technology provides broadband performance up to 5 GHz with excellent thermal perfomance. The heterojunction increases breakdown vo.

SBA-4089Z Features

* Now available in Lead Free, RoHS Compliant, & Green Packaging

* IP3 = 33.5dBm @ 1950MHz

* Pout=13.3 dBm @-45dBc ACP IS-95 1950MHz

* Robust 1000V ESD, Class 1C

* Operates From Single Supply

* Patented Thermal Design Applications

* PA Driver Am

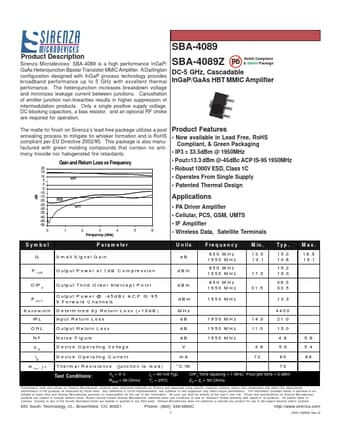

SBA-4089-SirenzaMicrodevices.pdf

SBA-4089Z Datasheet Preview — This datasheet PDF includes multiple part numbers: SBA-4089Z, SBA-4089. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SBA-4089Z, SBA-4089

Manufacturer:

Sirenza Microdevices

File Size:

310.11 KB

Description:

Cascadable ingap/gaas hbt mmic amplifier.

Note:

This datasheet PDF includes multiple part numbers: SBA-4089Z, SBA-4089.
Please refer to the document for exact specifications by model.
