SBA-5089 Cascadable InGaP/GaAs HBT MMIC Amplifier

Sirenza Microdevices’ SBA-5089 is a high performance InGaP/ GaAs Heterojunction Bipolar Transistor MMIC Amplifier. A Darlington configuration designed with InGaP process technology provides broadband performance up to 5 GHz with excellent thermal perfomance. The heterojunction increases breakdown vo.

SBA-5089 Features

* Now available in Lead Free, RoHS Compliant, & Green Packaging

* IP3 = 34.0dBm @ 1950MHz

* Pout=13.0 dBm @-45dBc ACP IS-95 1950MHz

* Robust 1000V ESD, Class 1C

* Operates From Single Supply

* Patented Thermal Design Applications

* PA Driver Am

SBA-5089-SirenzaMicrodevices.pdf

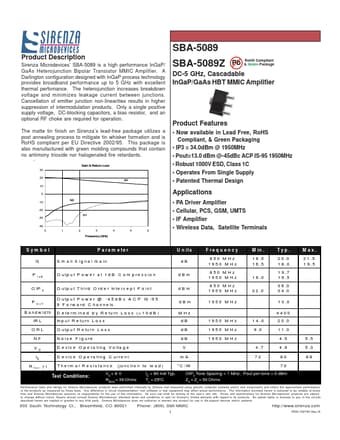

SBA-5089 Datasheet Preview — Preview of SBA-5089 PDF

Datasheet Details

Part number:

SBA-5089

Manufacturer:

Sirenza Microdevices

File Size:

305.01 KB

Description:

Cascadable ingap/gaas hbt mmic amplifier.
