SBA0530Q, SBA0520Q, EXTREME LOW VF SCHOTTKY RECTIFIER

PSBA0520Q SERIES EXTREME LOW VF SCHOTTKY RECTIFIER Voltage 20~40 V Current 0.5 A .

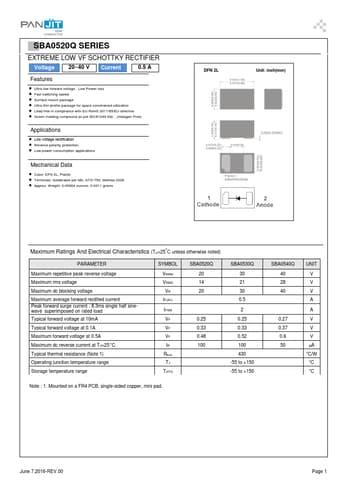

datasheet Preview Page 1 from Datasheet4u.com

SBA0520Q-PanJitInternational.pdf

SBA0530Q Datasheet Preview — This datasheet PDF includes multiple part numbers: SBA0530Q, SBA0520Q. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SBA0530Q, SBA0520Q

Manufacturer:

Pan Jit International

File Size:

251.71 KB

Description:

EXTREME LOW VF SCHOTTKY RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: SBA0530Q, SBA0520Q.
Please refer to the document for exact specifications by model.

Features

* Ultra low forward voltage , Low Power loss
* Fast switching speed
* Surface mount package
* Ultra thin profile package for space constrained utilization
* Lead free in compliance with EU RoHS 2011/65/EU directive
* Green molding compound as per IEC61249 Std. . (Halogen Free

Applications

* Low voltage rectiﬁcation
* Reverse polarity protection
* Low power consumption applications Mechanical Data
* Case: DFN 2L, Plastic
* Terminals: Solderable per MIL-STD-750, Method 2026
* Approx. Weight: 0.00004 ounces, 0.0011 grams DFN 2L Unit: inch(mm) Maximum Ratings
