SBA220AL EXTREME LOW VF SCHOTTKY RECTIFIER

SBA220AL Description

PSBA220AL SERIES EXTREME LOW VF SCHOTTKY RECTIFIER Voltage 20~40 V Current 2A .

SBA220AL Features

* Ultra low forward voltage , Low Power loss
* Fast switching speed
* Surface mount package
* Ultra thin profile package for space constrained utilization
* Lead free in compliance with EU RoHS 2011/65/EU directive
* Green molding compound as per IEC61249 Std. . (Halogen Free

SBA220AL Applications

* Low voltage rectification
* Reverse polarity protection
* Low power consumption applications Mechanical Data
* Case: Molded plastic, SOD-123FL
* Terminals: Solderable per MIL-STD-750, Method 2026
* Approx. Weight: 0.00061 ounces, 0.017 grams SOD-123FL Unit: inch(mm) Maxi

📥 Download Datasheet

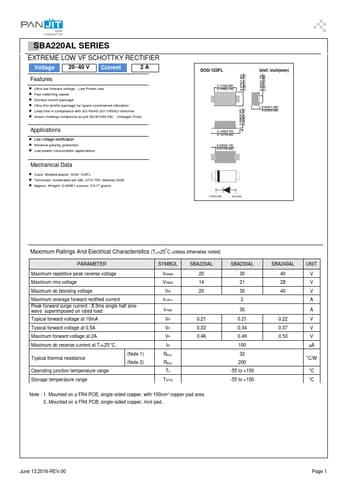

Preview of SBA220AL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SBA220AL
Manufacturer
Pan Jit International
File Size
269.79 KB
Datasheet
SBA220AL-PanJitInternational.pdf
Description
EXTREME LOW VF SCHOTTKY RECTIFIER
