SBA230AL, SBA220AL, EXTREME LOW VF SCHOTTKY RECTIFIER

PSBA220AL SERIES EXTREME LOW VF SCHOTTKY RECTIFIER Voltage 20~40 V Current 2A .

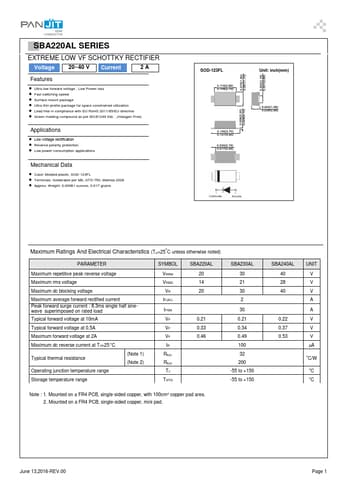

datasheet Preview Page 1 from Datasheet4u.com

SBA220AL-PanJitInternational.pdf

SBA230AL Datasheet Preview — This datasheet PDF includes multiple part numbers: SBA230AL, SBA220AL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SBA230AL, SBA220AL

Manufacturer:

Pan Jit International

File Size:

269.79 KB

Description:

EXTREME LOW VF SCHOTTKY RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: SBA230AL, SBA220AL.
Please refer to the document for exact specifications by model.

Features

* Ultra low forward voltage , Low Power loss
* Fast switching speed
* Surface mount package
* Ultra thin profile package for space constrained utilization
* Lead free in compliance with EU RoHS 2011/65/EU directive
* Green molding compound as per IEC61249 Std. . (Halogen Free

Applications

* Low voltage rectiﬁcation
* Reverse polarity protection
* Low power consumption applications Mechanical Data
* Case: Molded plastic, SOD-123FL
* Terminals: Solderable per MIL-STD-750, Method 2026
* Approx. Weight: 0.00061 ounces, 0.017 grams SOD-123FL Unit: inch(mm) Maxi
