SBA220CH EXTREME LOW VF SCHOTTKY RECTIFIER

SBA220CH Description

PSBA220CH SERIES EXTREME LOW VF SCHOTTKY BARRIER RECTIFIER Voltage 20~40 V Current 2A .

SBA220CH Features

* Ultra low forward voltage drop, low power loss
* Fast switching speed
* Surface mount package
* Ultra thin profile package for space constrained utilization
* Lead free in compliance with EU RoHS 2011/65/EU directive
* Green molding compound as per IEC61249 Std. . (Halogen

SBA220CH Applications

* Low voltage rectification
* Reverse polarity protection
* Low power consumption applications Mechanical Data
* Case: Molded plastic, SOD-323HE
* Terminals: Solderable per MIL-STD-750, Method 2026
* Approx. Weight: 0.0002 ounces, 0.005 grams Unit: inch(mm) Maximum Ratings

📥 Download Datasheet

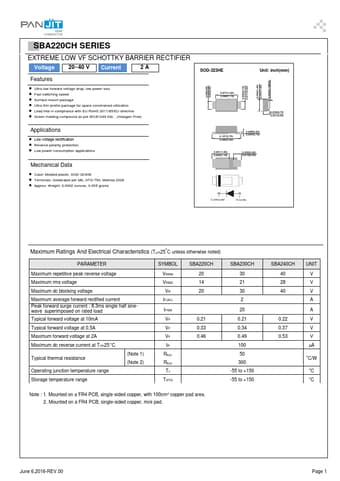

Preview of SBA220CH PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SBA220CH
Manufacturer
Pan Jit International
File Size
286.96 KB
Datasheet
SBA220CH-PanJitInternational.pdf
Description
EXTREME LOW VF SCHOTTKY RECTIFIER
