SBA240CH, SBA220CH, EXTREME LOW VF SCHOTTKY RECTIFIER

PSBA220CH SERIES EXTREME LOW VF SCHOTTKY BARRIER RECTIFIER Voltage 20~40 V Current 2A .

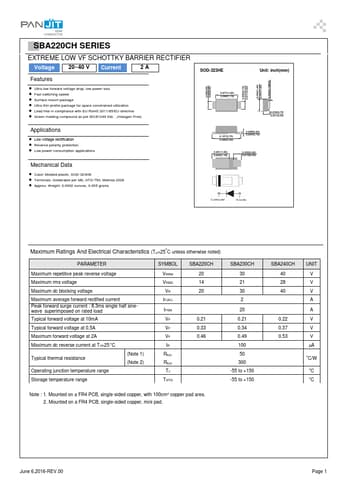

datasheet Preview Page 1 from Datasheet4u.com

SBA220CH-PanJitInternational.pdf

SBA240CH Datasheet Preview — This datasheet PDF includes multiple part numbers: SBA240CH, SBA220CH. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SBA240CH, SBA220CH

Manufacturer:

Pan Jit International

File Size:

286.96 KB

Description:

EXTREME LOW VF SCHOTTKY RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: SBA240CH, SBA220CH.
Please refer to the document for exact specifications by model.

Features

* Ultra low forward voltage drop, low power loss
* Fast switching speed
* Surface mount package
* Ultra thin profile package for space constrained utilization
* Lead free in compliance with EU RoHS 2011/65/EU directive
* Green molding compound as per IEC61249 Std. . (Halogen

Applications

* Low voltage rectiﬁcation
* Reverse polarity protection
* Low power consumption applications Mechanical Data
* Case: Molded plastic, SOD-323HE
* Terminals: Solderable per MIL-STD-750, Method 2026
* Approx. Weight: 0.0002 ounces, 0.005 grams Unit: inch(mm) Maximum Ratings
