SPF-2086TK Datasheet, Fet, Sirenza Microdevices

SPF-2086TK Features

• Fet
• 22 dB Gmax at 1.9 GHz
• 0.4 dB FMIN at 1.9 GHz
• +32 dBm Output IP3
• +20 dBm Output Power at 1dB Compression Applications
• LNA for Analog and

PDF File Details

Part number:

SPF-2086TK

Manufacturer:

Sirenza Microdevices

File Size:

609.52kb

Download:

📄 Datasheet

Description:

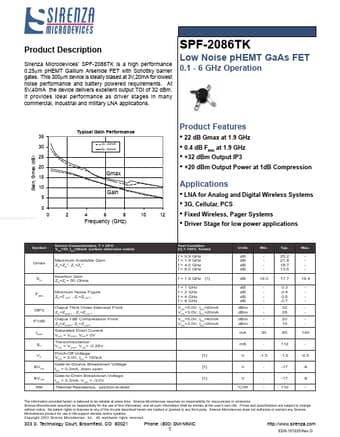

Low noise phemt gaas fet. Sirenza Microdevices’ SPF-2086TK is a high performance 0.25µm pHEMT Gallium Arsenide FET with Schottky barrier gates. This 300µm devi

SPF-2086TK Application

• Applications SPF-2086TK Low Noise pHEMT GaAs FET 0.1 - 6 GHz Operation 35 30 Gain, Gmax (dB) Typical Gain Performance 3v, 20mA 5v, 40mA 25 20 1
