ST7565 Datasheet - Sitronix Technology

ST7565 65 x 132 Dot Matrix LCD Controller/Driver

The ST7565 is a single-chip dot matrix LCD drivers that can be connected directly to a microprocessor bus. 8-bit parallel or serial display data sent from the microprocessor is stored in the internal display data RAM and the chip generates a LCD drive signal independent of the microprocessor. Becaus.

ST7565 Features

* Direct display of RAM data through the display data RAM. RAM capacity : 65 x 132 = 8580 bits Application Display driver circuits 1/65 duty : 65 common x 132 segment 1/49 duty : 49 common x 132 segment 1/33 duty : 33 common x 132 segment 1/55 duty : 55 common x 132 segment 1/53 duty : 53 common x 13

ST7565 Datasheet (463.02 KB)

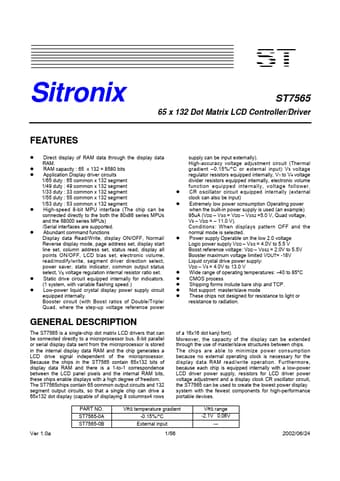

Preview of ST7565 PDF

Datasheet Details

Part number:

ST7565

Manufacturer:

Sitronix Technology

File Size:

463.02 KB

Description:

65 x 132 dot matrix lcd controller/driver.

📁 Related Datasheet

ST7565P 65 x 132 Dot Matrix LCD Controller/Driver (Sitronix Technology)

ST7565R 65 x 132 Dot Matrix LCD Controller/Driver (Sitronix)

ST7565S 65 x 132 Dot Matrix LCD Controller/Driver (Sitronix)

ST7565V 65 x 132 Dot Matrix LCD Controller/Driver (Sitronix Technology)

ST7567 65 x 132 Dot Matrix LCD Controller/Driver (Sitronix Technology)

ST7567A 132X65 Dot Matrix LCD Controller/Driver (Sitronix)

ST7567S 132x65 Dot Matrix LCD Controller/Driver (Sitronix Technology)

ST7568 68 x 102 Dot Matrix LCD Controller/Driver (Sitronix Technology)

ST750A ADJUSTABLE STEP-DOWN / CURRENT-MODE PWM DC-DC CONVERTERS (ST Microelectronics)

ST7511U 640 x 320 Mono-color TFT-LCD Controller/Driver (Sitronix)
