ST7565P 65 x 132 Dot Matrix LCD Controller/Driver

Sitronix ST7565P 65 x 132 Dot Matrix LCD Controller/Driver INTRODUCTION ST7565P is a single-chip dot matrix LCD driver which incorporates LCD controller and common/segment drivers. ST7565P can be connected directly to a microprocessor with 8-bit parallel interface or 4-line serial interface (SPI-4). Display data sent from MPU is stored in the internal Display Data RAM (DDRAM) of 65x132 bits. The display data bits which are stored in DDRAM are directly related to the pixels of LCD panel. ST756.

ST7565P Features

* Single-chip LCD Controller & Driver On-chip Display Data RAM (DDRAM) Capacity: 65x132=8580 bits Directly display RAM pattern from DDRAM Selectable Display Duty (by SEL3 & SEL2 & SEL1) 1/65 duty : 65 common x 132 segment 1/55 duty : 55 common x 132 segment 1/53 duty : 53 common x 132 segment 1/49 dut

ST7565P Datasheet (512.36 KB)

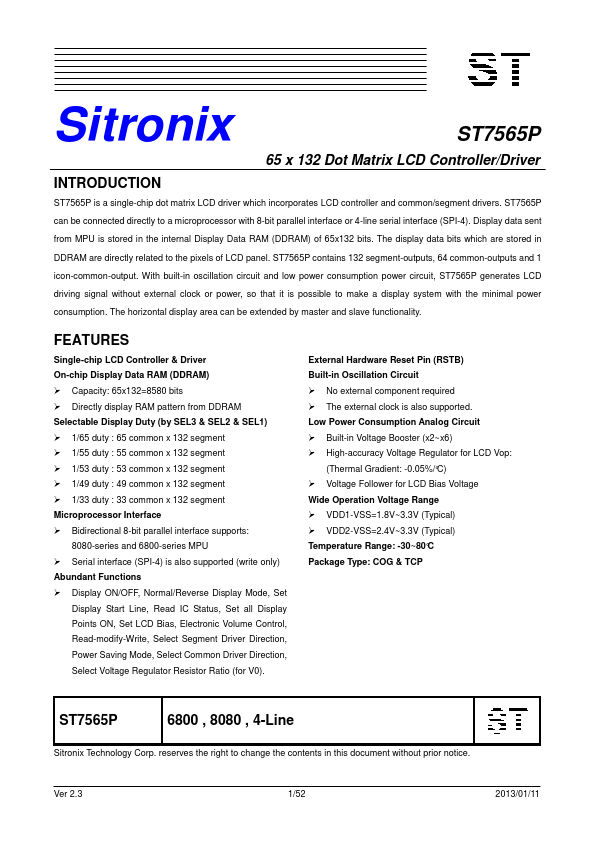

Preview of ST7565P PDF

Datasheet Details

Part number:

ST7565P

Manufacturer:

Sitronix Technology

File Size:

512.36 KB

Description:

65 x 132 dot matrix lcd controller/driver.

📁 Related Datasheet

ST7565 65 x 132 Dot Matrix LCD Controller/Driver (Sitronix Technology)

ST7565R 65 x 132 Dot Matrix LCD Controller/Driver (Sitronix)

ST7565S 65 x 132 Dot Matrix LCD Controller/Driver (Sitronix)

ST7565V 65 x 132 Dot Matrix LCD Controller/Driver (Sitronix Technology)

ST7567 65 x 132 Dot Matrix LCD Controller/Driver (Sitronix Technology)

ST7567A 132X65 Dot Matrix LCD Controller/Driver (Sitronix)

ST7567S 132x65 Dot Matrix LCD Controller/Driver (Sitronix Technology)

ST7568 68 x 102 Dot Matrix LCD Controller/Driver (Sitronix Technology)

ST750A ADJUSTABLE STEP-DOWN / CURRENT-MODE PWM DC-DC CONVERTERS (ST Microelectronics)

ST7511U 640 x 320 Mono-color TFT-LCD Controller/Driver (Sitronix)

TAGS

ST7565P 132 Dot Matrix LCD Controller Driver Sitronix Technology

Image Gallery

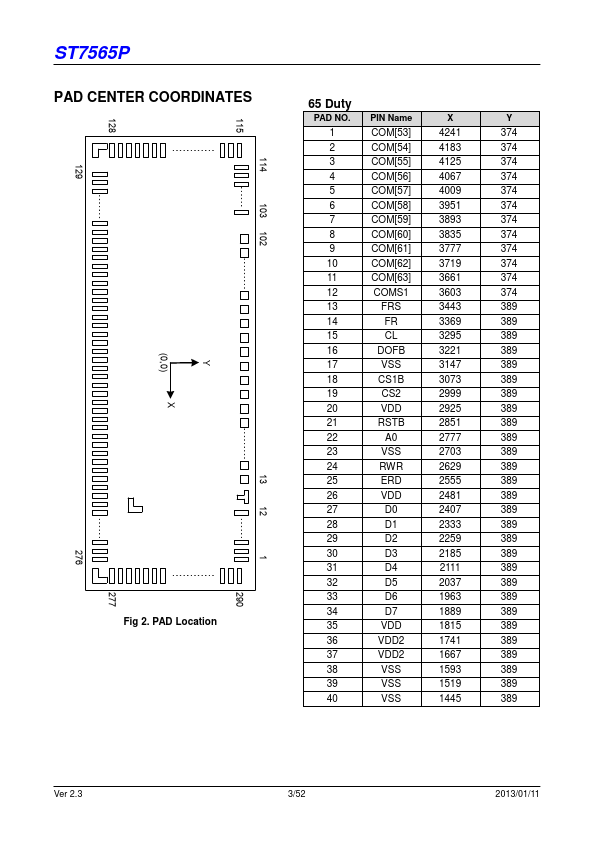

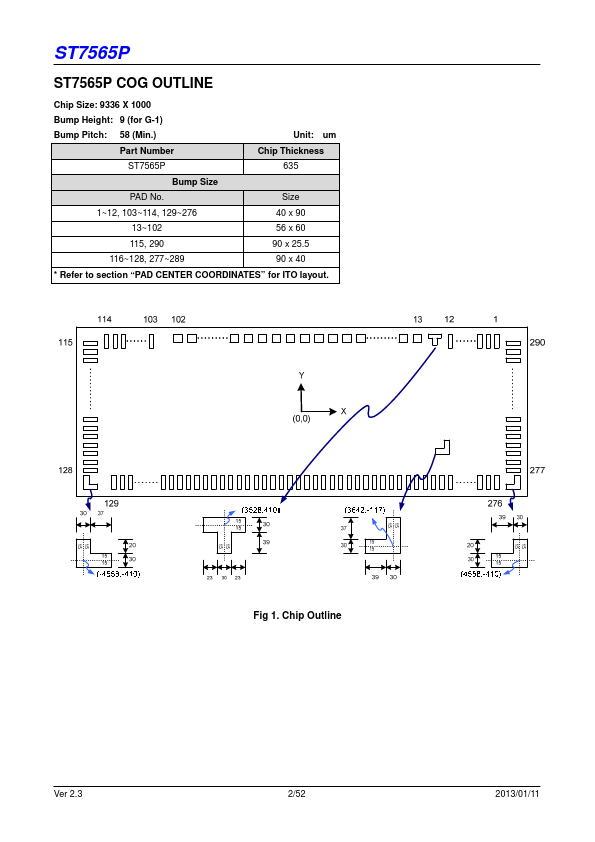

ST7565P Datasheet Preview Page 2 ST7565P Datasheet Preview Page 3
