ST7565S

65 x 132 Dot Matrix LCD Controller/Driver

Sitronix

ST7565S Features

* z z z Direct display of RAM data through the display data RAM. RAM capacity : 65 x 132 = 8580 bits Display duty selectable by select pin 1/65 duty : 65 common x 132 segment 1/49 duty : 49 common x 132 segment 1/33 duty : 33 common x 132 segment 1/55 duty : 55 common x 132 segment 1/53 duty : 53 comm

ST7565S General Description

The ST7565S is a single-chip dot matrix LCD driver that can be connected directly to a microprocessor bus. 8-bit parallel or serial display data sent from the microprocessor is stored in the internal display data RAM and the chip generates a LCD drive signal independent of the microprocessor. Becaus.

ST7565S Datasheet (681.94 KB)

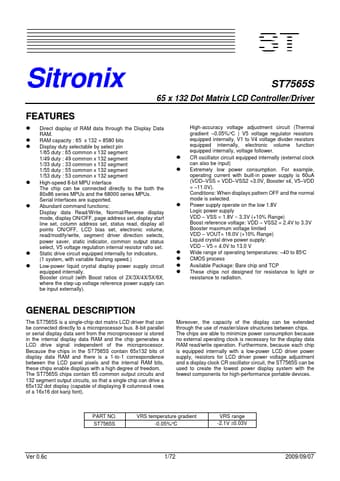

ST7565S Datasheet Preview — Preview of ST7565S PDF

Datasheet Details

Part number:

ST7565S

Manufacturer:

Sitronix

File Size:

681.94 KB

Description:

65 x 132 dot matrix lcd controller/driver.
