ST7567 Datasheet - Sitronix Technology

ST7567 65 x 132 Dot Matrix LCD Controller/Driver

Sitronix ST7567 65 x 132 Dot Matrix LCD Controller/Driver 1. INTRODUCTION ST7567 is a single-chip dot matrix LCD driver which incorporates LCD controller and common/segment drivers. ST7567 can be connected directly to a microprocessor with 8-bit parallel interface or 4-line serial interface (SPI-4). Display data sent from MPU is stored in the internal Display Data RAM (DDRAM) of 65x132 bits. The display data bits which are stored in DDRAM are directly related to the pixels of LCD panel. ST756.

ST7567 Features

* Single-chip LCD Controller & Driver On-chip Display Data RAM (DDRAM) Capacity: 65x132=8580 bits Directly display RAM pattern from DDRAM Selectable Display Duty (by SEL2 & SEL1) 1/65 duty : 65 common x 132 segment 1/55 duty : 55 common x 132 segment 1/49 duty : 49 common x 132 segment 1/33 duty : 33

ST7567 Datasheet (673.17 KB)

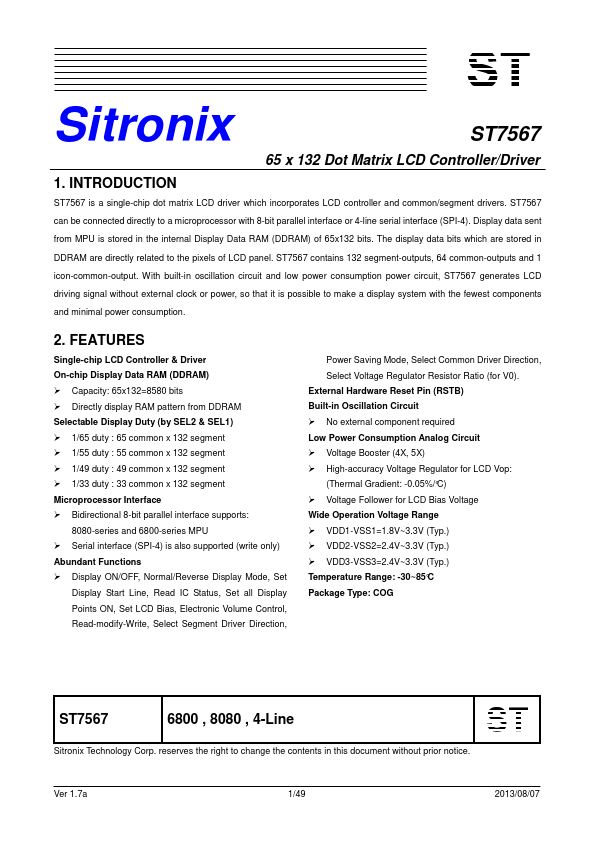

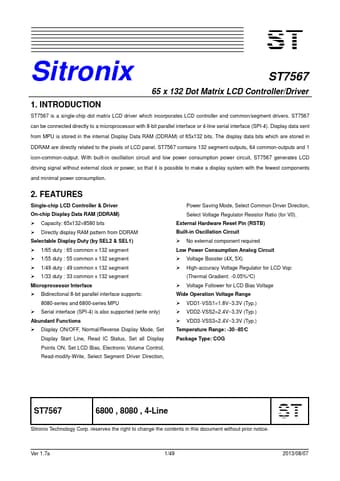

Preview of ST7567 PDF

Datasheet Details

Part number:

ST7567

Manufacturer:

Sitronix Technology

File Size:

673.17 KB

Description:

65 x 132 dot matrix lcd controller/driver.

📁 Related Datasheet

ST7565 65 x 132 Dot Matrix LCD Controller/Driver (Sitronix Technology)

ST7565P 65 x 132 Dot Matrix LCD Controller/Driver (Sitronix Technology)

ST7565R 65 x 132 Dot Matrix LCD Controller/Driver (Sitronix)

ST7565S 65 x 132 Dot Matrix LCD Controller/Driver (Sitronix)

ST7565V 65 x 132 Dot Matrix LCD Controller/Driver (Sitronix Technology)

ST7567A 132X65 Dot Matrix LCD Controller/Driver (Sitronix)

ST7567S 132x65 Dot Matrix LCD Controller/Driver (Sitronix Technology)

ST7568 68 x 102 Dot Matrix LCD Controller/Driver (Sitronix Technology)

ST750A ADJUSTABLE STEP-DOWN / CURRENT-MODE PWM DC-DC CONVERTERS (ST Microelectronics)

ST7511U 640 x 320 Mono-color TFT-LCD Controller/Driver (Sitronix)

TAGS

ST7567 132 Dot Matrix LCD Controller Driver Sitronix Technology

Image Gallery

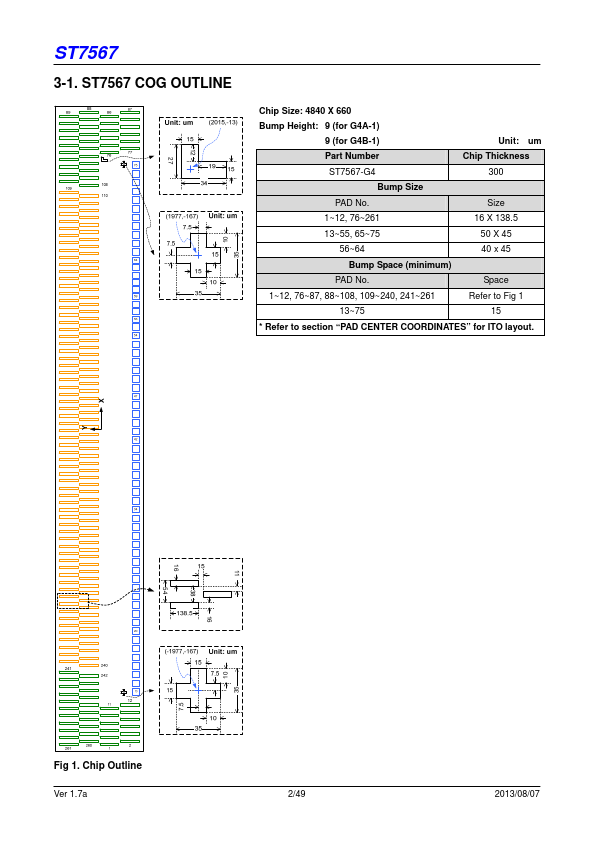

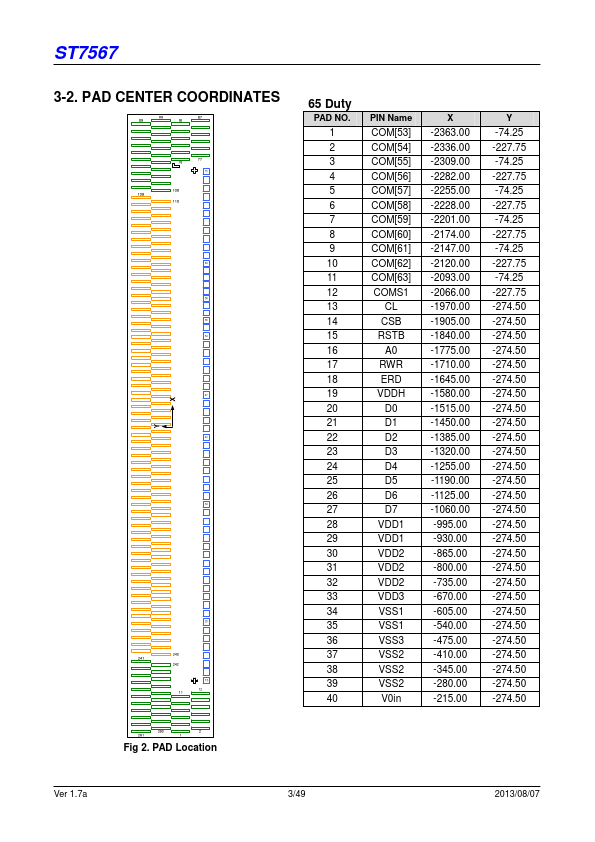

ST7567 Datasheet Preview Page 2 ST7567 Datasheet Preview Page 3
