SKY13434-002

0.1 - 6.0 GHz SP3T/SPDT Wire-Bondable GaAs Die

SKY13434-002 Features

* SP3T (2.5 GHz) and SPDT (5.0 GHz) switches with Bluetooth® capability

* Positive voltage control: 2.7 to 3.6 V

* Low insertion loss

* High isolation

* IP1dB: +33 dBm typical @ 2.4 GHz and 3 V

* Small GaAs die (60 micron square bond pads, 80 micron mi

SKY13434-002 General Description

The SKY13434-002 is a GaAs pHEMT wire-bondable die. The device includes a Single-Pole, Triple-Throw (SP3T) antenna switch for 2.5 GHz transmit, receive, and Bluetooth operations, and a Single-Pole, Double-Throw (SPDT) antenna switch for 5 GHz transmit and receive operation. Any of the RF ports can b.

SKY13434-002 Datasheet (369.67 KB)

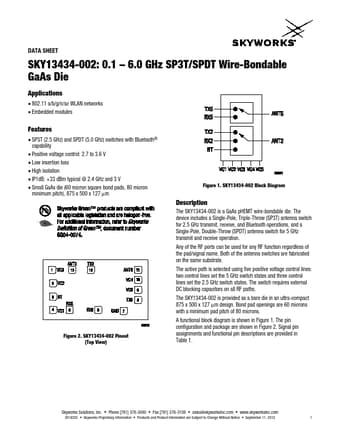

Preview of SKY13434-002 PDF

Datasheet Details

Part number:

SKY13434-002

Manufacturer:

Skyworks Solutions

File Size:

369.67 KB

Description:

0.1 - 6.0 ghz sp3t/spdt wire-bondable gaas die.
DATA SHEET SKY13434-002: 0.1

* 6.0 GHz SP3T/SPDT Wire-Bondable GaAs Die Applications

* 802.11 a/b/g/n/ac WLAN networks

* Embe.
