SKY13586-678LF

2.4 to 2.5GHz SP3T Switch

SKY13586-678LF Features

* Positive low voltage control: 0/1.8 to 3.6 V

* Insertion loss: 0.75 dB @ 2.5 GHz (typical)

* High isolation: 35 dB @ 2.5 GHz (typical)

* 1.8 V and 3.3 V logic compatibility

* Wide 3 to 5 V supply voltage range

* Integrated DC blocking capacitors

SKY13586-678LF General Description

The SKY13586-678LF is a single-pole, triple-throw (SP3T) antenna switch for 2.4 GHz Wi-Fi applications. Switching between the antenna (RFC signal) and the RF1, RF2, and RF3 ports is accomplished with two control voltages (V1 and V2). The low loss, high isolation, high linearity, small size, and low .

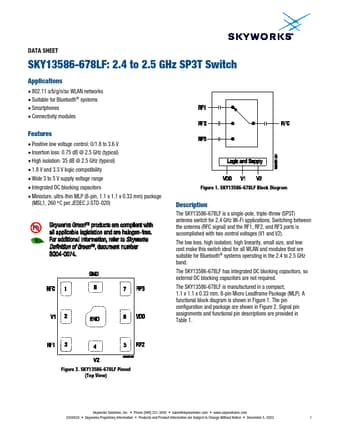

SKY13586-678LF Datasheet (844.19 KB)

Preview of SKY13586-678LF PDF

Datasheet Details

Part number:

SKY13586-678LF

Manufacturer:

Skyworks

File Size:

844.19 KB

Description:

2.4 to 2.5ghz sp3t switch.
DATA SHEET SKY13586-678LF: 2.4 to 2.5 GHz SP3T Switch Applications

* 802.11 a/b/g/n/ac WLAN networks

* Suitable for Bluetooth® systems.
